11.6-inch Industrial Embedded Monitor
11.6-inch industrial display monitor,featuring a metal casing that effectively addresses signal interference,offers clear and high-quality image quality and advanced functions,and is capable of reliable 24/7 operation for years in harsh factory environments.
Industrial Monitor with Metal Enclosure
Product Details
Related Cases
Related Post
Screen Parameters
Panel Type Industrial：11.6″ Control A style TFT
Resolution：1920*1080
Pixel per inch (PPI)：190PPI
Aspect ratio：16:9
Gray-scale response time：5ms
Display colors：16.7M
Brightness：300 cd/m²(customizable higher brightness)
Viewing angle：85/85/85/85(L/R/U/D); (Customizable 178° full view angle)
Touch-type:Resistive / capacitive / non-touch screen
Number of touches:≥ 50 million times
Operating temperature:0°C ~ +50°C
Storage temperature:-10°C ~ +70°C

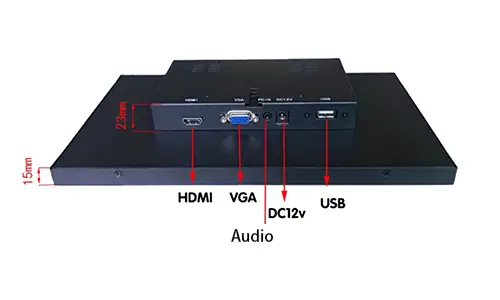

O/I interface parameters
Signal Interface:HDMI, VGA,BNC
Power connector:DC with ring attachment (optional DC terminal block)
Touch interface:USB
Other interfaces:Audio input and output
