12.1-inch TFT LCD 1280X800 LVDS 1000nits High Brightness LCD with Wide Temperature Range
12.1" sunlight readable, high brightness (1000 nits)
Resolution：1280*800
Touch method：on-Cell Touch, I²C
Aspect ratio：16：10
Viewing angle：85/85/85/85
Backlight power consumption：7920mW
Operating temperature：-20°C ~ +70°C
Resolution：1280*800
Touch method：on-Cell Touch, I²C
Aspect ratio：16：10
Viewing angle：85/85/85/85
Backlight power consumption：7920mW
Operating temperature：-20°C ~ +70°C
High Brightness LCD for Industrial Applications
Product Details
Related Cases
Related Post
Description：12.1″ TFT LCD, 1000 nits LED backlight,
size：12.1 inch

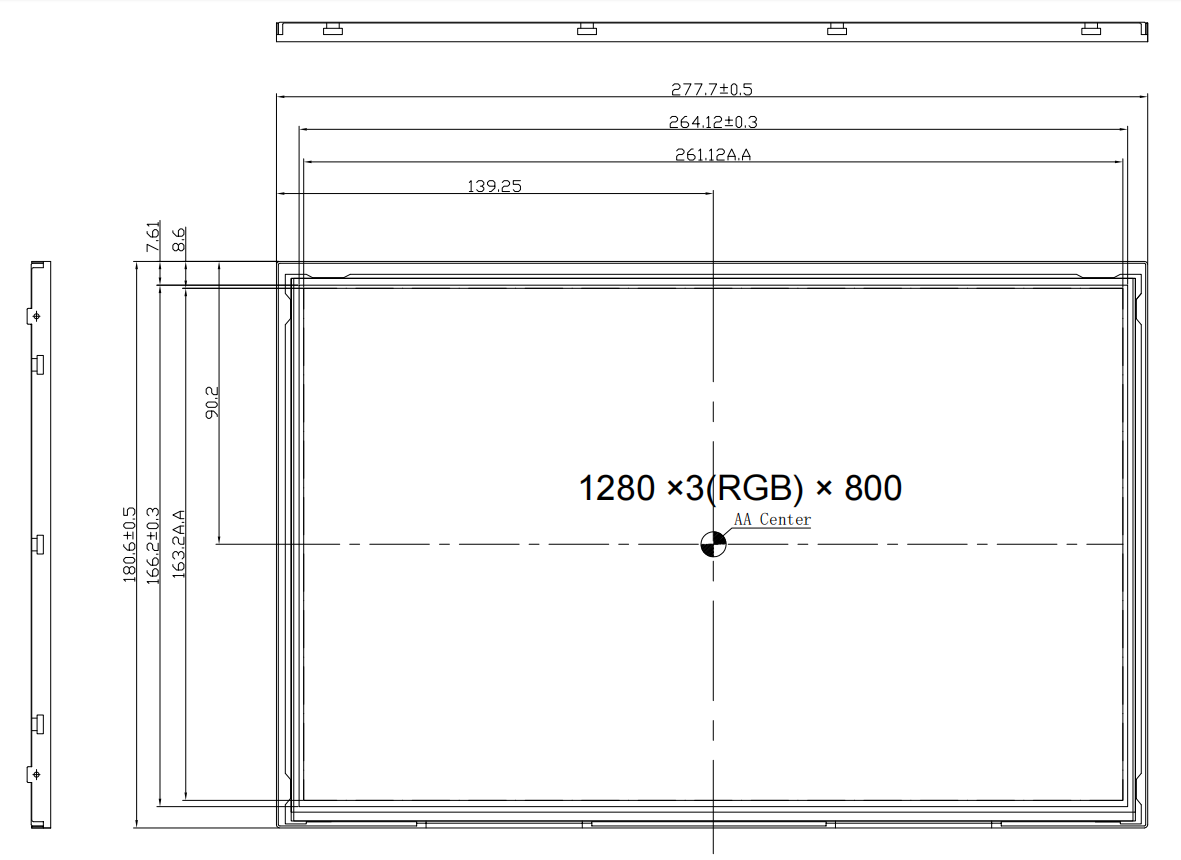

Display area (mm)：261.12(W)×163.2(H) mm

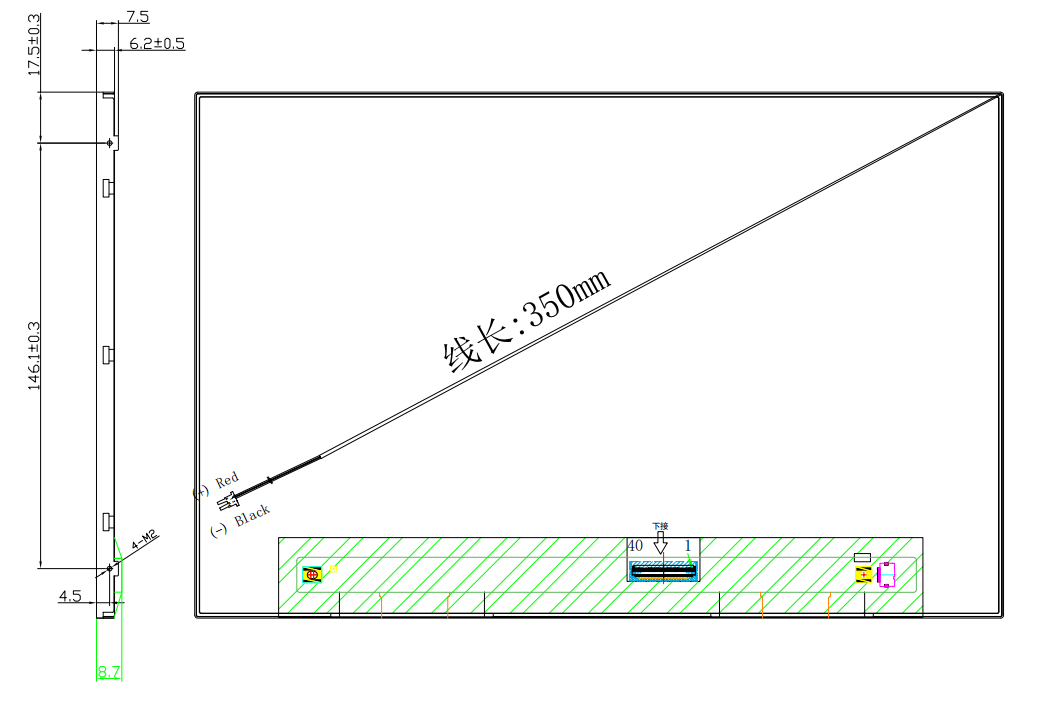

Module size: 277.7(W) x180.6(H) x8.7(D)mm
Brightness：1000 cd/m²
Resolution：1280*800
Aspect ratio：16:10
Pixel per inch (PPI)：124PPI
Viewing angle：85/85/85/85 (Typ.)
Display colors：16.7M

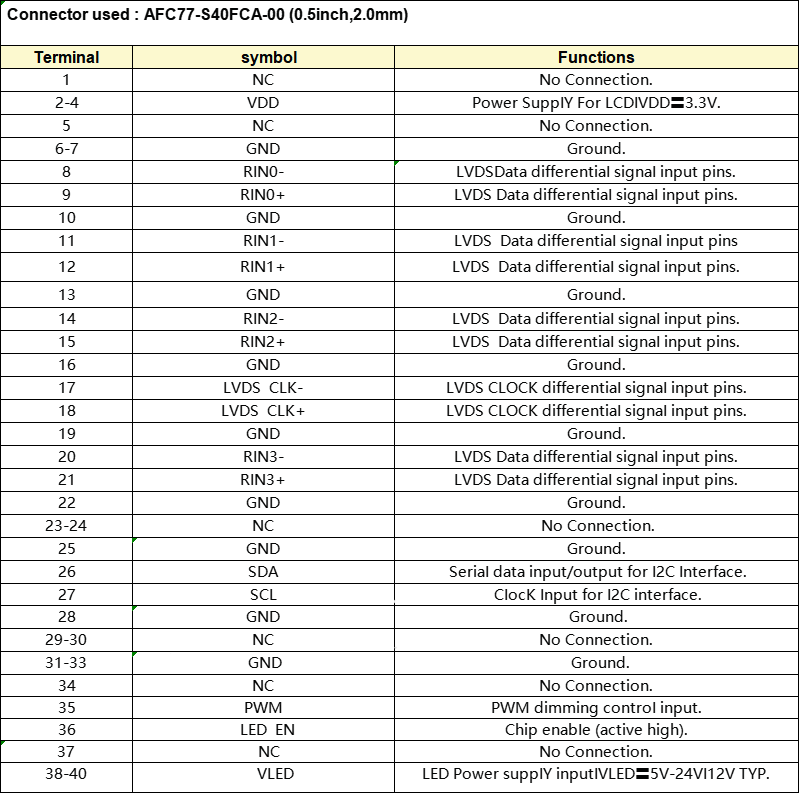

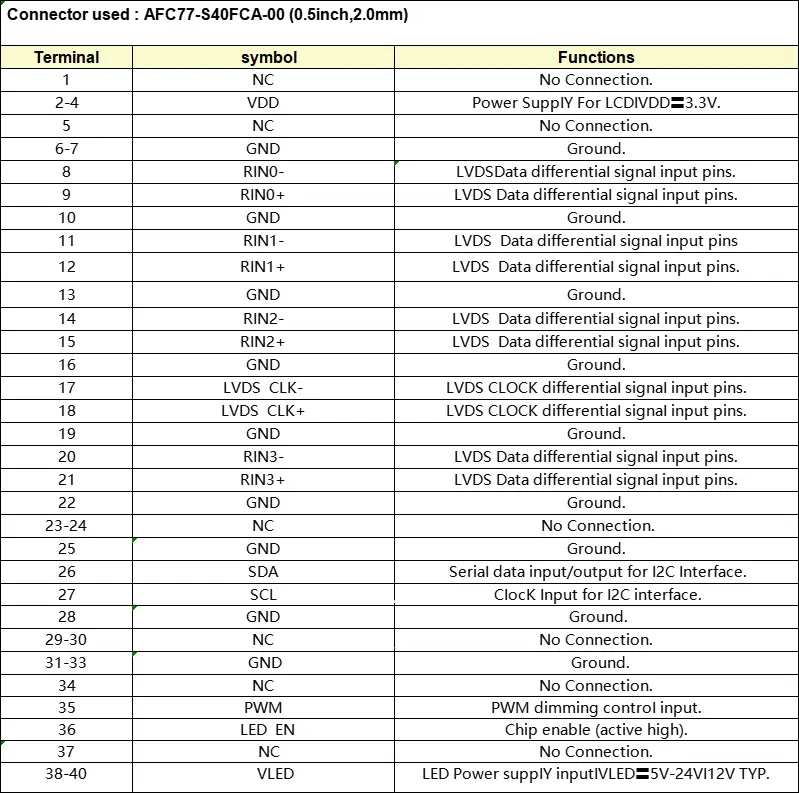

Signal Type：LVDS (1 ch, 8-bit) , 40 pins
Backlight power consumption:26.4V/300 MA
Operating temperature:-20°C ~ +70°C
Storage temperature:-30°C ~ +80°C
