23.8 inch stretched Bar LCD LVDS 500nits high brightness LCD Display Kit
23.8" Stretched Bar LCD (500 nits)
Resolution：153-1080 P
Touch method：on-Cell Touch, I²C
Aspect ratio：32 : 9 , 23 : 9 58 : 9
Viewing angle：85/85/85/85
Backlight power consumption：30W
Operating temperature：0°C ~ +50°C
Resolution：153-1080 P
Touch method：on-Cell Touch, I²C
Aspect ratio：32 : 9 , 23 : 9 58 : 9
Viewing angle：85/85/85/85
Backlight power consumption：30W
Operating temperature：0°C ~ +50°C
Stretched bar LCD are commonly used on shelves,display stands,and in rail transit.
Product Details
Related Cases
Related Post

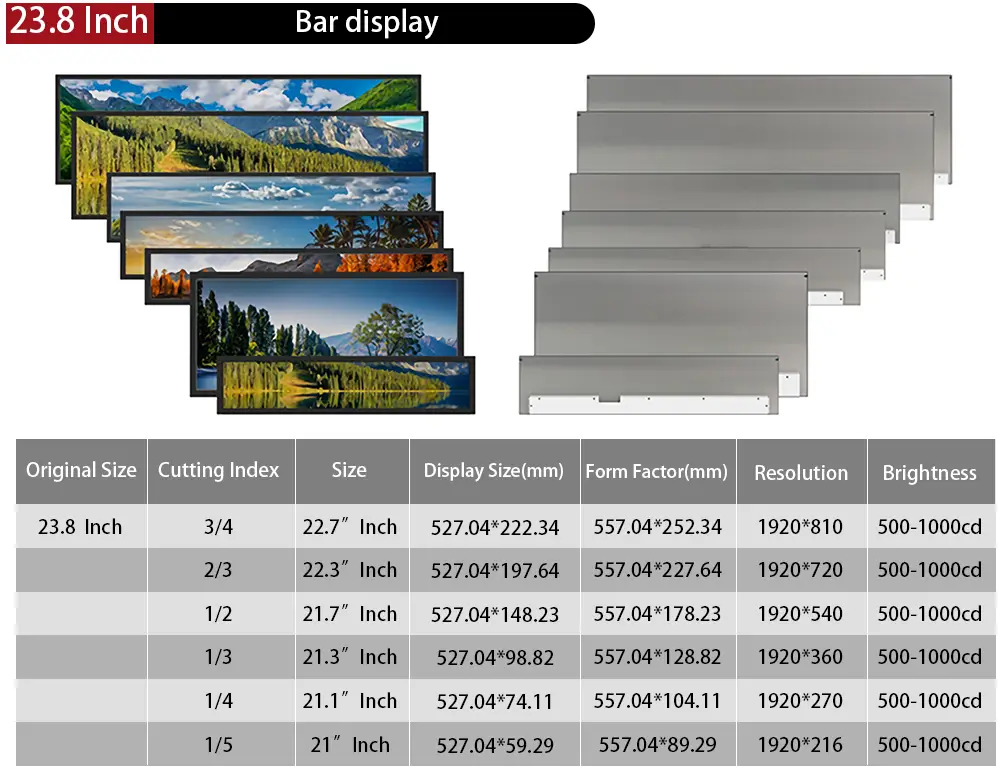

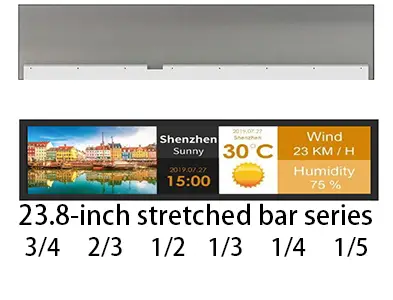

Stretched Bar LCD Display Series
Stretched Bar LCD Display Featur
- Ultra-Wide Aspect Ratio: 32:9, 23:9, 58:9
- Resolution: 1080P (RGB)
- Double-sided: Customizable
- TouchScreen: Factory Touch and PCAP Touch Option
- Tempered Glasses: Covered with tempered glass for protection
- CMS: centralized in the digital signage software. Remotely controlled
- OS: Optional Android or Linux system
- Speaker: Optional built-in Speaker
- Interface: Connects to existing media players via HDMI
- Daisy Chain: Built-in splicing function
- Multi – Screens: One screen split-screen display
- IPS Panel
