5.5-inch 1920×1080 MIPI 2000-nits wide-temperature high-brightness LCD panel
5.5" sunlight readable, high brightness (2000 nits)
Resolution：1920*1080
Touch method：on-Cell Touch, I²C
Aspect ratio：16：9
Viewing angle：89/89/89/89
Backlight power consumption：3240mW
Operating temperature：-10°C ~ +70°C
Resolution：1920*1080
Touch method：on-Cell Touch, I²C
Aspect ratio：16：9
Viewing angle：89/89/89/89
Backlight power consumption：3240mW
Operating temperature：-10°C ~ +70°C
Energy-saving high-brightness liquid crystal display screen
Product Details
Related Cases
Related Post
Description：5.5″ TFT LCD, 2000 nits LED backlight,
size：5.5 inch
Display area (mm)：68.04(W)×120.96(H) mm

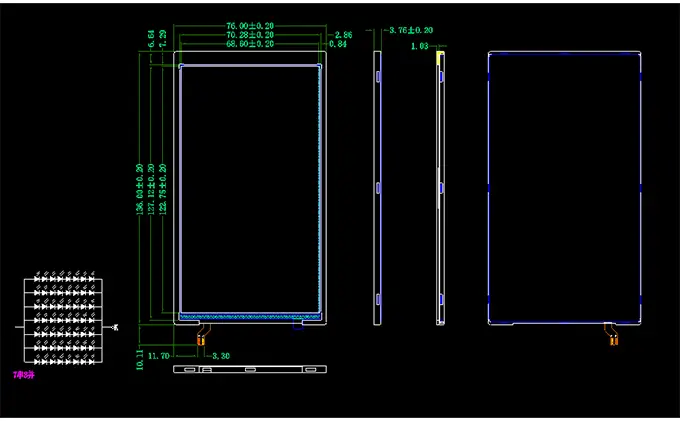

Module size: 76(W) x136(H) x3.6(D)mm
Brightness：2000 cd/m²
Resolution：1920*1080
Aspect ratio：16:9
Pixel per inch (PPI)：403PPI
Viewing angle：89/89/89/89
Display colors：16.7M

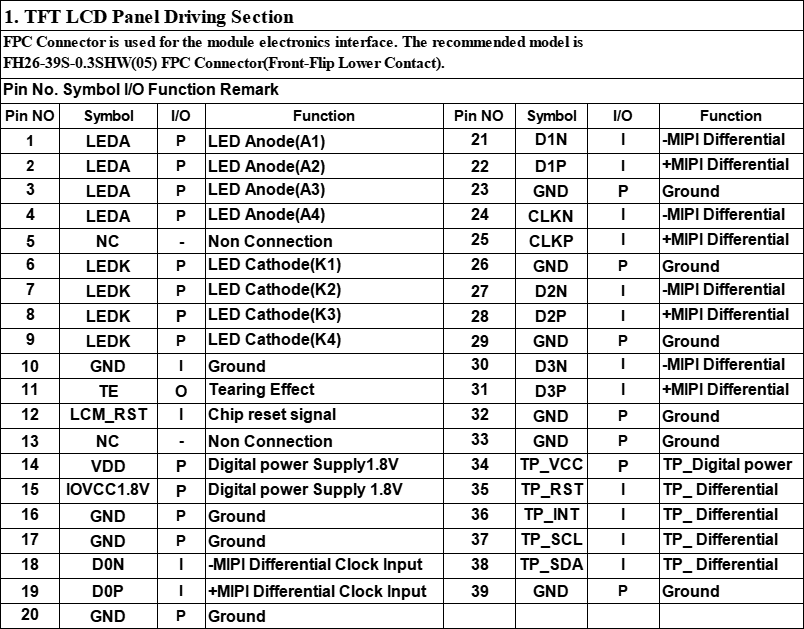

Signal Type：MIPI (4 data lanes) , 39 pins , FPC
Backlight power consumption:7200 mW
Operating temperature:-10°C ~ +70°C
Storage temperature:-20°C ~ +80°C
