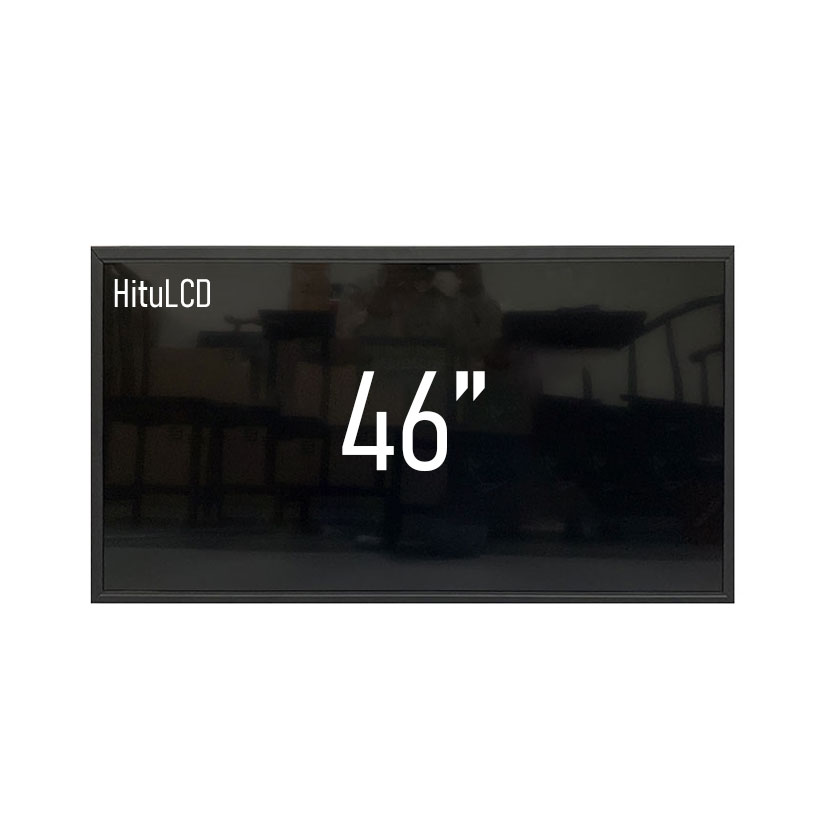

46 Inch Sunlight Readable LCD Panel, Suitable For Outdoor Signage And OEM Integration.
MODEL: HT460FHD-D3000
BRIGHTNESS
3000
nits
SIZE
46
inch
RESOLUTION
1920*1080
ASPECT RATIO
16：9
Technical Highlights
- Ultra-High Brightness with Sunlight Readability (2000–3000 nits)
- Direct-Lit LED Backlight for Uniformity & Thermal Stability
- Industrial-Grade Design with OEM Customization Flexibility
certification standard
ISO9001
CE
FCC
ROSH
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 46" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA，DP |
| Size | 46 | Power Input | AC 100~240V |
| Display area (mm) | 698.4(H)x 392.85(V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 718x412x14 | ||
| Mounting | VESA400x200 | ||
| Bezel size (U/B/L/R) | 7.9/7.9/7.9/7.9 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
