Custom Stretched Bar LCD Display for Retail

Stretched Bar LCD
Display Panels

Ultra-wide aspect ratio panels built for retail shelf signage, transit information boards, and deep OEM integration. 18.5" to 55", cuttable, up to 1,000 nits.

Standard sizes available

50KH

Rated operating lifespan

1K+

OEM projects delivered

24/7

Continuous operation rated

find 0 A product

Stretched Bar LCD Display

view

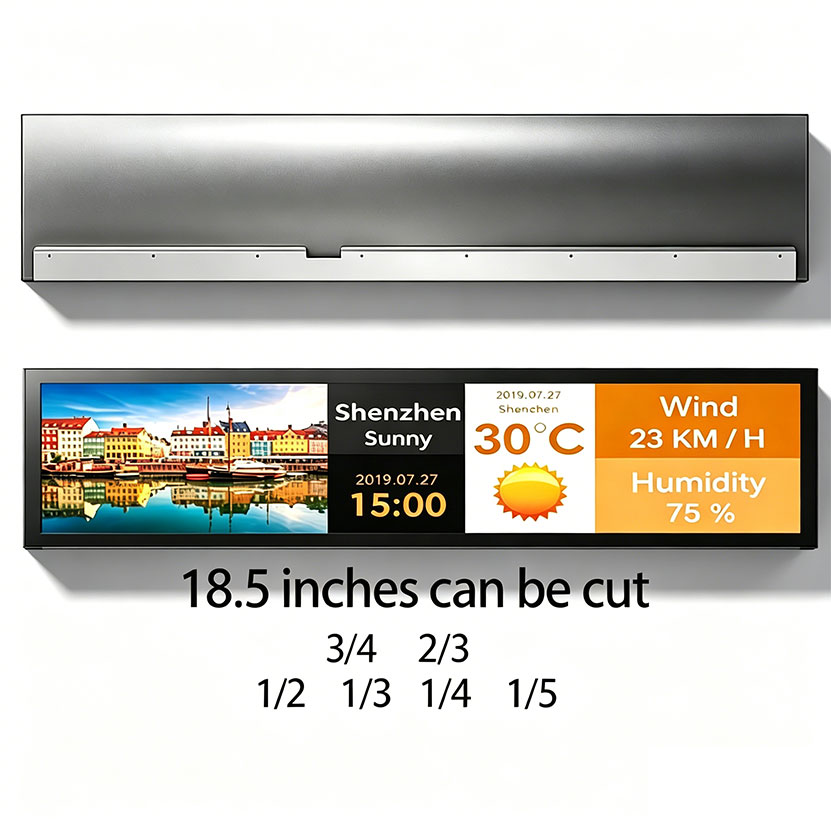

18.5 Inch Cuttable Stretched Bar LCD Display | 500-1000nits

Brightness 1000 nits

Resolution 1366*Cuttable

ODM 50000H -20°C to 70°C Customizable

21.5 Inch Cuttable Bar LCD Display | Custom Stretched Panel 500-1000nits

Stretched Bar LCD Display

view

21.5 Inch Cuttable Bar LCD Display | Custom Stretched Panel 500-1000nits

Brightness 1000 nits

Resolution 1920*1080

ODM 50000H -20°C to 70°C Customizable

23.8 Inch Cuttable Bar LCD Panel for OEM Signage |500-1000nits

Stretched Bar LCD Display

view

23.8 Inch Cuttable Bar LCD Panel for OEM Signage |500-1000nits

Brightness 1000 nits

Resolution 1920*1080

ODM 50000H -20°C to 70°C Customizable

27 Inch Cuttable Bar LCD Display for OEM / Signage | 500-1000nits

Stretched Bar LCD Display

view

27 Inch Cuttable Bar LCD Display for OEM / Signage | 500-1000nits

Brightness 1000 nits

Resolution 1920*1080

ODM 50000H -20°C to 70°C Customizable

32 Inch Cuttable Stretched LCD Panel for OEM Integration Projects

Stretched Bar LCD Display

view

32 Inch Cuttable Stretched LCD Panel for OEM Integration Projects

Brightness 1000 nits

Resolution 1920*Cuttable

ODM 50000H -20°C to 70°C Customizable

40 Inch Cuttable Stretched Bar LCD for Outdoor OEM | 500-1000nits

Stretched Bar LCD Display

view

40 Inch Cuttable Stretched Bar LCD for Outdoor OEM | 500-1000nits

Brightness 1000 nits

Resolution 1920×1080

ODM 50000H -20°C to 70°C Customizable

43 Inch Semi Outdoor Bar LCD for Digital Signage | 500-1000nits

Stretched Bar LCD Display

view

43 Inch Semi Outdoor Bar LCD for Digital Signage | 500-1000nits

Brightness 1000 nits

Resolution 1920*1080

ODM 50000H -20°C to 70°C Customizable

49 Inch 1000nits Stretched LCD Display for Retail | 500-1000nits

Stretched Bar LCD Display

view

49 Inch 1000nits Stretched LCD Display for Retail | 500-1000nits

Brightness 1000 nits

Resolution 3840*2160

ODM 50000H -20°C to 70°C Customizable

Stretched Bar LCD Display

view

55 Inch 1000nits Stretched Bar LCD Display for OEM Integration

Brightness 1000 nits

Resolution 3840*2160

ODM 50000H -20°C to 70°C Customizable

Built for spaces where standard screens don't fit

A stretched bar LCD display (also called a bar-type panel or strip display) is a panel engineered with a dramatically elongated aspect ratio—typically from 5:1 up to 32:1—far beyond the 16:9 format of conventional monitors. This geometry makes them uniquely suited for shelf-edge price labels, bus and train interior tickers, elevator advertising strips, and narrow architectural signage recesses.

Unlike repurposed standard panels, our bar displays are manufactured specifically for the non-standard form factor. The backlight, driver board, and LCD glass are all optimized for the elongated shape, delivering uniform brightness from edge to edge without the brightness falloff you'd see in a cut-down standard panel.

The cuttable series goes further: the panel assembly allows one axis to be trimmed to a non-standard dimension during OEM integration, giving hardware engineers a precise fit inside custom enclosures—without tooling a new glass size.

Where Stretched Bar Displays Are Deployed

Real-world installations across retail, transportation, industrial, and public infrastructure projects.

🛒

Retail Shelf Signage

Mounted along shelf rails in supermarkets, convenience stores, and pharmacies to display real-time pricing, promotions, and product information. The narrow form factor fits standard gondola shelving with no modification.

Recommended: 18.5" – 27" cuttable series

🚌

Transit Information Boards

Deployed in bus, metro, and airport interiors for route maps, departure boards, and passenger announcements. Wide temperature tolerance handles heating/cooling cycles and cold-environment operation.

Recommended: 27" – 43" series

🏗️

Industrial HMI Panels

Integrated into machine control interfaces, production line status boards, and factory automation dashboards where horizontal or vertical strip displays are embedded into equipment enclosures.

Recommended: Cuttable panel, 18.5" – 32"

🏢

Elevator & Lobby Advertising

Fitted inside elevator doors and lobby fascia panels for building directory, advertisement, and wayfinding displays. The thin bezel and standard interfaces make retrofit installation straightforward.

Recommended: 21.5" – 40" series

✈️

Airport & Station Departure Screens

High-brightness 1,000-nit panels ensure legibility in the high-ambient-light environments typical of transit hubs. 24/7 duty-cycle rating handles continuous display operation without thermal throttling.

Recommended: 43" – 55" series

🎰

Gaming & Vending Machines

Used as top-mounted attract displays, jackpot banners, and status strips on gaming terminals and vending machines, where the ultra-wide format fits the machine's vertical chassis naturally.

Recommended: 18.5" – 23.8" cuttable

Environment	Brightness Required	Size Range	Key Features Needed	Recommended Model
Indoor retail shelf (standard lighting)	500 – 700 nits	18.5" – 27"	Cuttable panel, compact form factor	18.5" / 21.5" Cuttable
Retail shop window (daylight interference)	700 – 1,000 nits	23.8" – 32"	High brightness, wide temp range	23.8" / 27" 1,000 nits
Bus / rail interior (heating + vibration)	500 – 800 nits	27" – 43"	−20°C to 70°C rated, ODM interface config	32" / 40" Cuttable
Semi-outdoor transit hub (covered)	700 – 1,000 nits	40" – 55"	Semi-outdoor rating, 24/7 duty cycle	43" Semi-Outdoor
Airport large-format departure board	1,000 nits	49" – 55"	4K resolution, wide viewing angle	49" / 55" 4K Series
Industrial HMI / OEM enclosure	500 – 1,000 nits	Any – custom cut	Cuttable panel, LVDS / eDP interface	Cuttable OEM Panel

Environment

Brightness Required

Size Range

Key Features Needed

Recommended Model

Indoor retail shelf (standard lighting)

500 – 700 nits

18.5" – 27"

Cuttable panel, compact form factor

18.5" / 21.5" Cuttable

Retail shop window (daylight interference)

700 – 1,000 nits

23.8" – 32"

High brightness, wide temp range

23.8" / 27" 1,000 nits

Bus / rail interior (heating + vibration)

500 – 800 nits

27" – 43"

−20°C to 70°C rated, ODM interface config

32" / 40" Cuttable

Semi-outdoor transit hub (covered)

700 – 1,000 nits

40" – 55"

Semi-outdoor rating, 24/7 duty cycle

43" Semi-Outdoor

Airport large-format departure board

1,000 nits

49" – 55"

4K resolution, wide viewing angle

49" / 55" 4K Series

Industrial HMI / OEM enclosure

500 – 1,000 nits

Any – custom cut

Cuttable panel, LVDS / eDP interface

Cuttable OEM Panel

Customer Experience

What OEM Partners & Integrators Say

Verified feedback from hardware engineers, retail technology teams, and system integrators worldwide.

★★★★★

"We deployed 340 units of the 21.5-inch cuttable series across our German supermarket chain. The panels arrived precisely to spec—trimmed to our gondola shelf height with no rework required. Brightness uniformity across the panel edge is notably better than our previous supplier."

Markus K.

Hardware Lead, Retail Technology — Germany

"Integrated the 32-inch cuttable panel into our vending machine enclosure. The LVDS interface worked with our existing controller board without modification. HituLCD's engineering team provided the signal timing documentation within 24 hours of request—that level of support is rare."

Tom R.

Embedded Systems Engineer — United Kingdom

★★★★☆

"Running 80 units of the 43-inch semi-outdoor model in our transit station pilot. Six months in and zero panel failures despite significant daily temperature swings. The only improvement I'd suggest is adding an RS-232 control interface as a standard option."

Samir L.

Digital Signage Director — Singapore

"Sourced 55-inch 4K bar panels for a luxury elevator project in Dubai. The visual quality at 1,000 nits is exceptional—content looks premium even in direct competition with ambient lobby lighting. Lead time on a 20-unit order was 18 days, which surprised us positively."

Nadia A.

AV Integration Specialist — UAE
