27 Inch Cuttable Bar LCD Display for OEM / Signage | 500-1000nits
MODEL: HT270HDL-1000
Technical Highlights
- Supports precision cutting from standard LCD panels, enabling various non-standard sizes and ultra-wide aspect ratios (such as 16:3, 32:9, etc.) to meet the needs of special installation scenarios such as shelving, vehicle mounting, and embedded equipment.
- Utilizes high-brightness backlighting (typically 800–2500 nits) and wide viewing angle technology to ensure clear visibility in bright light environments or densely populated areas.
- Equipped with a reinforced structure and efficient heat dissipation design, it supports long-term continuous operation (MTBF up to 50,000 hours+) and is adaptable to complex environments such as high temperatures and vibrations.
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

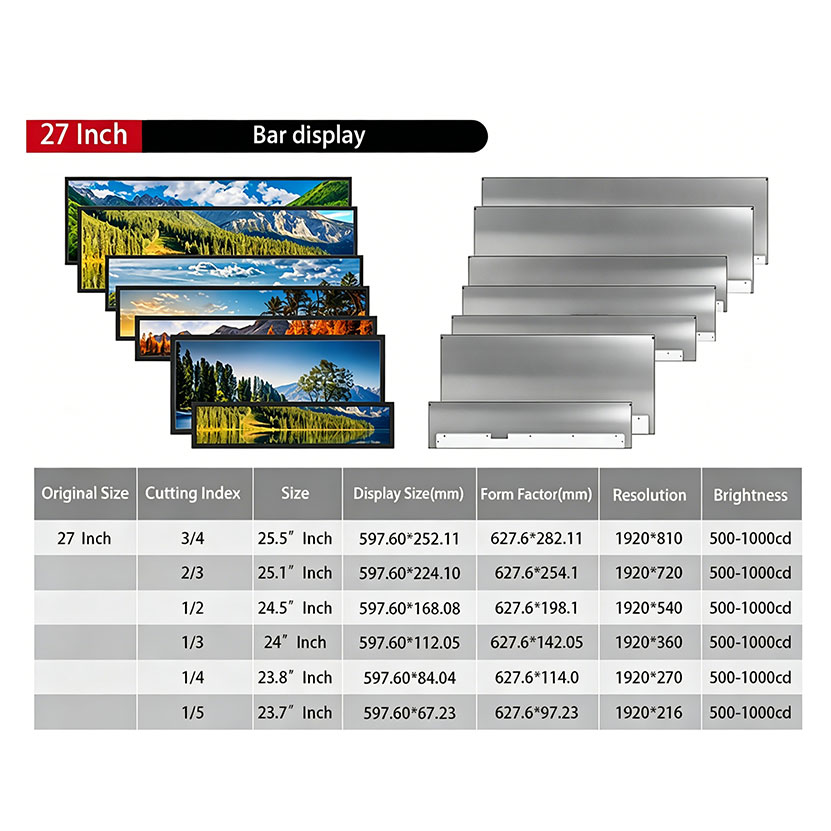

27-inch Bar Display Cuttable Sizes
| Original Size | Cutting Index | Size | Display Size (mm) | Form Factor (mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 27 Inch | 3/4 | 25.5" Inch | 597.60 × 252.11 | 627.6 × 282.11 | 1920 × 810 | 500–1000 cd/m² |
| 2/3 | 25.1" Inch | 597.60 × 224.10 | 627.6 × 254.1 | 1920 × 720 | 500–1000 cd/m² | |
| 1/2 | 24.5" Inch | 597.60 × 168.08 | 627.6 × 198.1 | 1920 × 540 | 500–1000 cd/m² | |
| 1/3 | 24" Inch | 597.60 × 112.05 | 627.6 × 142.05 | 1920 × 360 | 500–1000 cd/m² | |
| 1/4 | 23.8" Inch | 597.60 × 84.04 | 627.6 × 114.0 | 1920 × 270 | 500–1000 cd/m² | |
| 1/5 | 23.7" Inch | 597.60 × 67.23 | 627.6 × 97.23 | 1920 × 216 | 500–1000 cd/m² |
27 Inch Strip Screen Technical Parameters
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 27" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 27 | Power Input | AC 100~240V |
| Display area (mm) | 597.6×336.15 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 82 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 597.6×336.15 mm (H×V) | ||
| Mounting | VESA100x100 | ||
| Bezel size (U/B/L/R) | 15/15/15/15 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
Bar-Type Stretched LCD Display OEM/ODM Product Layout Description
PRODUCT SPECIFICATION SHEET
Bar-Type Stretched LCD Display OEM / ODM Layout Description
Customization Brief for Stretched Bar LCD Screen
FORM FACTOR ILLUSTRATION
Screen Type
TFT-LCD Stretched Bar
Stretched Bar Display
Standard Sizes
7″ — 49″
Custom Non-standard Sizes Available
Aspect Ratio
≥ 3 : 1
Typical: 16:3 / 16:4.5
Brightness
400 — 2000 Nit
High Brightness Outdoor Version Optional
LAYOUT ZONE DIVISION
Primary Info Zone
Brand Logo, Main Title & Core Promotion Content, occupying 40–60% of the layout
Secondary Info Zone
Scrolling Subtitles, Price, Date & Time, Promotional Info, occupying 20–40% of the layout
Media Playback Zone
Image & Video Carousel, freely combined and divided with other zones
Auxiliary Function Zone
Weather Widget, QR Code, Countdown Timer, customized as per client requirements
Branding Customization
Client provides layout design draft
Mass production per drawings
Print customer brand logo
Low MOQ requirement
Delivery lead time: 4–6 weeks
In-depth R&D Customization
Factory participates in layout design
Full customization on structure & software
Exclusive mold development
NDA confidentiality agreement required
Delivery lead time: 8–16 weeks
CUSTOMIZATION CHECKLIST
TYPICAL APPLICATION SCENARIOS
Expertise
Advanced expertise in high-brightness 27-inch bar LCD display solutions
HITULCD specializes in the engineering and integration of 27-inch cuttable bar LCD displays designed for professional OEM signage and industrial display applications.
Our expertise is built around developing customized stretched LCD systems that combine high brightness, structural flexibility, stable operation, and reliable long-term commercial performance.
Engineering expertise for non-standard display integration
Professional expertise in stretched and cuttable LCD display architecture for customized commercial installations.
Strong understanding of how to optimize brightness uniformity, signal stability, thermal performance, and mechanical reliability within ultra-wide LCD structures.
Designed specifically for OEM integration projects requiring flexible dimensions and professional-grade operational stability.
Expertise in stretched bar LCD structural design
Extensive experience with bar-type LCD integration for retail, transportation, industrial equipment, and digital signage systems.
Optimized display structures help maintain stable image quality and reliable operation in elongated display formats.
Engineering teams understand the practical challenges behind integrating stretched displays into limited or customized installation spaces.
High-brightness display optimization capability
Expertise in developing 500–1000 nits high-brightness LCD solutions for commercial environments with strong ambient lighting conditions.
Advanced backlight optimization improves sunlight readability, brightness consistency, and long-term operational stability.
Optical enhancement experience helps improve display clarity and visual performance in public-facing commercial applications.
OEM integration and customization expertise
Strong expertise supporting custom OEM display projects with different structural, electrical, and installation requirements.
Familiar with multiple interface solutions including LVDS, HDMI, VGA, and industrial controller integration.
Flexible engineering support for customized dimensions, housing adaptation, mounting structures, and project-specific operational requirements.
Reliability expertise for commercial deployment
Engineering designs focus on continuous operation stability, thermal management, and long operational lifespan.
Experience reducing risks related to heat accumulation, brightness degradation, and unstable performance during extended commercial use.
HITULCD understands the reliability standards expected by European OEM customers and professional system integrators.
What defines HITULCD expertise
Professional expertise in high-brightness stretched LCD engineering
Strong capability in custom OEM display integration
Advanced understanding of thermal, optical, and structural optimization
Practical experience with commercial and industrial deployment environments
Reliable engineering communication for international OEM customers
HITULCD is not simply a display supplier — we are an engineering-focused manufacturer delivering customized stretched LCD solutions designed for customers who require reliable performance, flexible integration, and true commercial-grade display expertise.
Experience
Proven experience in high-brightness stretched LCD display integration
HITULCD has built extensive hands-on experience in the development and integration of 27-inch cuttable bar LCD displays for commercial OEM signage and industrial display systems.
Our experience comes from supporting real-world projects that require customized display structures, reliable brightness performance, and long-term operational stability in demanding commercial environments.
Experience developed through practical OEM projects
HITULCD understands that stretched LCD systems require far more than standard panel assembly.
We focus on the complete integration process including high-brightness optimization, thermal management, signal compatibility, structural adaptation, and long-term reliability.
Years of engineering practice allow us to support customized display projects with greater integration efficiency and operational stability.
Extensive experience with stretched and cuttable LCD applications
Strong experience integrating bar-type and ultra-wide LCD displays into customized commercial systems.
Familiar with deployment requirements for retail shelf displays, transportation signage, vending equipment, smart terminals, and digital information systems.
Engineering teams understand how to maintain stable image quality, brightness consistency, and structural reliability in stretched display formats.
High-brightness LCD engineering experience
Extensive experience developing 500–1000 nits high-brightness LCD solutions for commercial environments with strong ambient lighting.
Optimized backlight structures help improve display readability and long-term brightness stability.
Focus on reliable visual performance for commercial systems operating continuously over extended periods.
OEM customization and integration capability
Strong background supporting custom OEM display integration projects with different dimensional and structural requirements.
Experience with multiple signal interfaces including LVDS, HDMI, VGA, and industrial control board systems.
Flexible engineering support helps customers simplify installation and accelerate project development.
Reliable commercial deployment experience
HITULCD understands the operational demands behind professional commercial display systems.
Engineering designs focus on thermal efficiency, continuous operation stability, and dependable long-term performance.
Experience supporting European and international OEM customers who require stable product quality and professional technical communication.
Why OEM customers work with HITULCD
Extensive experience in high-brightness stretched LCD technology
Strong capability in custom OEM display integration
Practical understanding of commercial and industrial deployment environments
Flexible engineering support for customized projects
Reliable technical communication for international customers
HITULCD is more than a display supplier — we are an experienced engineering-oriented manufacturer focused on delivering stable, customized, and integration-ready stretched LCD solutions for professional OEM applications.
