32 Inch Cuttable Strip LCD Panel for OEM Integration Projects |500-1000nits
MODEL: HT320HDL-1000
Technical Highlights
- Cuttable / Custom Size / Flexible Integration
- Ultra-wide / High Brightness / Wide Viewing Angle
- 24/7 Operation / Android Integration / Remote Control
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

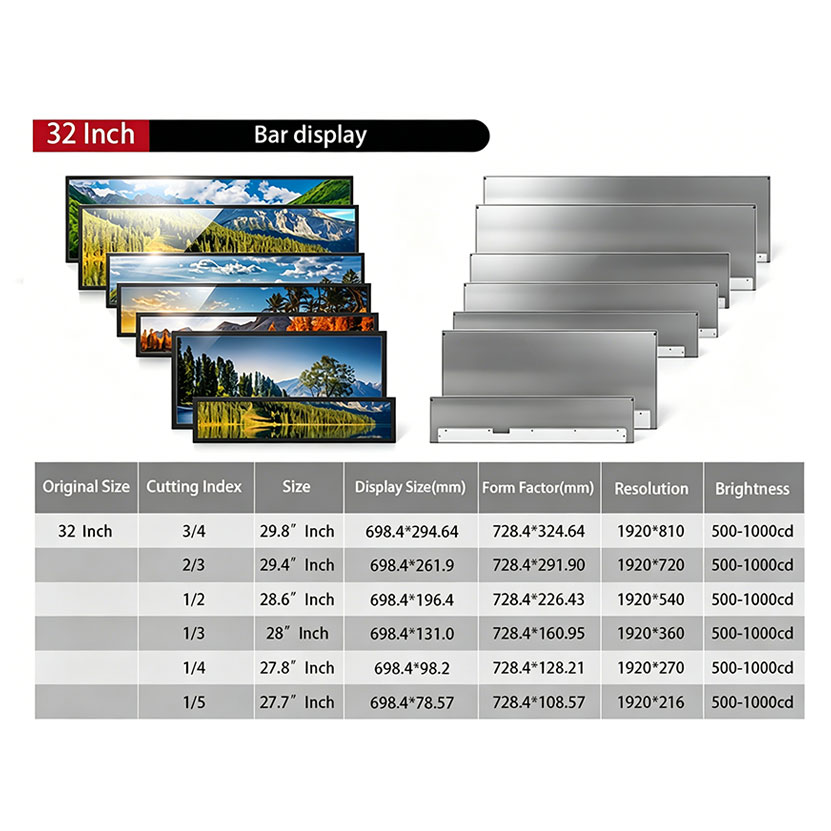

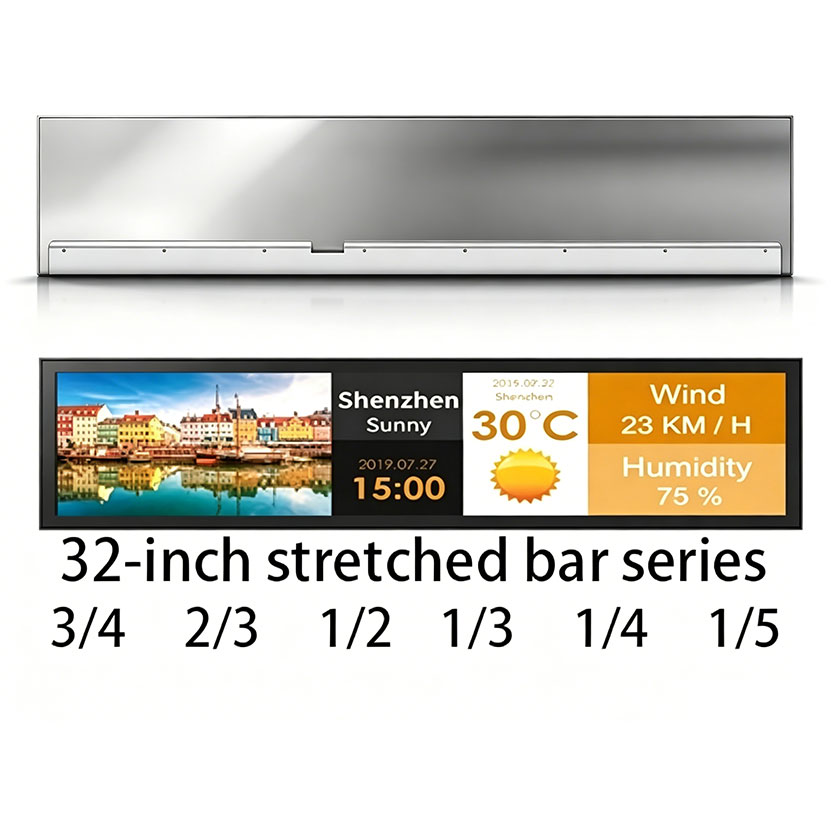

32-inch Bar Display Cuttable Sizes
| Original Size | Cutting Index | Size | Display Size(mm) | Form Factor(mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 32 Inch | 3/4 | 29.8" Inch | 698.4*294.64 | 728.4*324.64 | 1920*810 | 500-1000cd |
| 2/3 | 29.4" Inch | 698.4*261.9 | 728.4*291.90 | 1920*720 | 500-1000cd | |
| 1/2 | 28.6" Inch | 698.4*196.4 | 728.4*226.43 | 1920*540 | 500-1000cd | |
| 1/3 | 28" Inch | 698.4*131.0 | 728.4*160.95 | 1920*360 | 500-1000cd | |
| 1/4 | 27.8" Inch | 698.4*98.2 | 728.4*128.21 | 1920*270 | 500-1000cd | |
| 1/5 | 27.7" Inch | 698.4*78.57 | 728.4*108.57 | 1920*216 | 500-1000cd |
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 32" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 32 | Power Input | AC 100~240V |
| Display area (mm) | 698.4×392.85 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 698.4×392.85 mm (H×V) | ||
| Mounting | VESA100x100 | ||
| Bezel size (U/B/L/R) | 15/15/15/15 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
Bar-Type Stretched LCD Display OEM/ODM Product Layout Description
PRODUCT SPECIFICATION SHEET
Bar-Type Stretched LCD Display OEM / ODM Layout Description
Customization Brief for Stretched Bar LCD Screen
FORM FACTOR ILLUSTRATION
Screen Type
TFT-LCD Stretched Bar
Stretched Bar Display
Standard Sizes
7″ — 49″
Custom Non-standard Sizes Available
Aspect Ratio
≥ 3 : 1
Typical: 16:3 / 16:4.5
Brightness
400 — 2000 Nit
High Brightness Outdoor Version Optional
LAYOUT ZONE DIVISION
Primary Info Zone
Brand Logo, Main Title & Core Promotion Content, occupying 40–60% of the layout
Secondary Info Zone
Scrolling Subtitles, Price, Date & Time, Promotional Info, occupying 20–40% of the layout
Media Playback Zone
Image & Video Carousel, freely combined and divided with other zones
Auxiliary Function Zone
Weather Widget, QR Code, Countdown Timer, customized as per client requirements
Branding Customization
Client provides layout design draft
Mass production per drawings
Print customer brand logo
Low MOQ requirement
Delivery lead time: 4–6 weeks
In-depth R&D Customization
Factory participates in layout design
Full customization on structure & software
Exclusive mold development
NDA confidentiality agreement required
Delivery lead time: 8–16 weeks
CUSTOMIZATION CHECKLIST
TYPICAL APPLICATION SCENARIOS
Experience
Extensive experience in 32-inch high-brightness strip LCD integration
HITULCD has accumulated strong engineering and integration experience in the development of 32-inch cuttable strip LCD displays for OEM signage and industrial display systems.
Our experience comes from supporting customized commercial projects that require reliable high-brightness performance, flexible structural adaptation, and stable long-term operation in demanding environments.
Experience built around real OEM integration projects
HITULCD understands that large stretched LCD systems require far more than standard panel modification.
We focus on the complete display integration process including backlight optimization, thermal management, signal stability, mechanical adaptation, and operational reliability.
Years of engineering practice allow us to support complex OEM projects with improved integration efficiency and dependable long-term performance.
Extensive experience with cuttable strip LCD structures
Strong experience developing ultra-wide and cuttable LCD display solutions for non-standard commercial installations.
Familiar with applications including retail shelf-edge signage, transportation systems, industrial equipment, smart vending solutions, and digital information displays.
Engineering teams understand how to maintain stable image quality, brightness consistency, and structural reliability in stretched LCD formats.
High-brightness display engineering capability
Extensive experience with 500–1000 nits high-brightness LCD systems designed for commercial environments with strong ambient lighting.
Optimized backlight structures help improve display readability and operational stability during continuous use.
Practical knowledge of optical and thermal optimization helps reduce brightness degradation and uneven display performance over time.
OEM customization and system integration experience
Strong background supporting custom OEM display integration projects with flexible dimensional and structural requirements.
Experience integrating multiple signal systems including LVDS, HDMI, VGA, and industrial controller solutions.
Flexible engineering support helps customers simplify installation and accelerate commercial deployment.
Reliable long-term commercial deployment experience
HITULCD understands the reliability standards expected in professional commercial display systems operating for extended periods.
Engineering designs focus on thermal efficiency, continuous operation stability, and dependable long-term performance.
Experience supporting European and international OEM customers who require professional technical communication and consistent product quality.
Why OEM customers choose HITULCD
Extensive experience in high-brightness strip LCD technology
Strong capability in custom OEM display integration
Practical understanding of commercial and industrial deployment environments
Flexible engineering support for customized projects
Reliable technical communication for international customers
HITULCD is more than a display supplier — we are an experienced engineering-oriented manufacturer focused on delivering stable, customized, and integration-ready strip LCD solutions for professional OEM applications.
Expertise
Professional expertise in 32-inch high-brightness strip LCD solutions
HITULCD delivers advanced expertise in the engineering and integration of 32-inch cuttable strip LCD displays for OEM signage, industrial equipment, and customized commercial display systems.
Our expertise is built around helping customers develop reliable stretched LCD solutions that combine high brightness, flexible structural adaptation, stable operation, and professional-grade integration capability.
Engineering expertise developed for real OEM environments
Specialized expertise in stretched and cuttable LCD architecture for non-standard display installations.
Strong understanding of how to optimize brightness uniformity, thermal performance, signal transmission, and structural stability within ultra-wide LCD systems.
Engineering-focused development process designed specifically for OEM and industrial integration projects.
Expertise in large-format strip LCD integration
Extensive experience integrating 32-inch strip LCD displays into customized commercial and industrial systems.
Familiar with deployment requirements for retail shelf-edge signage, transportation displays, industrial control systems, smart vending equipment, and public information terminals.
Optimized structural engineering helps maintain stable image quality and long-term operational reliability in stretched display formats.
High-brightness LCD optimization capability
Expertise in developing 500–1000 nits high-brightness display solutions for commercial environments with strong ambient lighting.
Advanced backlight optimization improves brightness consistency, display readability, and operational stability during continuous use.
Experience with optical enhancement technologies designed for professional commercial signage applications.
OEM customization and engineering integration expertise
Strong expertise supporting custom OEM display integration projects with flexible dimensional and structural requirements.
Familiar with multiple interface solutions including LVDS, HDMI, VGA, and industrial controller integration.
Flexible engineering support for customized housing adaptation, mounting methods, and project-specific operational requirements.
Reliability expertise for commercial deployment
Engineering designs focus on thermal management, continuous operation stability, and long service lifespan.
Practical expertise in reducing risks related to heat accumulation, brightness degradation, and unstable long-term performance.
HITULCD understands the reliability and engineering standards expected by European OEM customers and professional system integrators.
What defines HITULCD expertise
Professional expertise in high-brightness strip LCD engineering
Strong capability in custom OEM display integration
Advanced understanding of thermal, optical, and structural optimization
Practical experience with commercial and industrial deployment environments
Reliable engineering communication for international OEM projects
HITULCD is not only a display manufacturer — we are an engineering-driven partner delivering professionally integrated strip LCD solutions designed for customers who require reliable performance, customization flexibility, and commercial-grade display expertise.
