23.8 Inch Cuttable Bar LCD Panel for OEM Signage |500-1000nits
MODEL: HT238HDL-1000
Technical Highlights
- Supports custom cutting to different lengths and proportions to adapt to various irregularly shaped scenarios such as shelf displays, wayfinding strips, and vehicle displays, significantly reducing mold and customization costs.
- Optional high-brightness solutions (e.g., 700–1500 nits) ensure clear visibility in commercial environments; industrial-grade backlight design supports 24/7 continuous operation, meeting the stability requirements of European and American B2B projects.
- Supports multiple interfaces (LVDS/eDP/HDMI), compatible with mainstream control boards; offers flexible customization of size, interfaces, and brightness for easy and rapid integration into retail, transportation, and advertising systems.
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

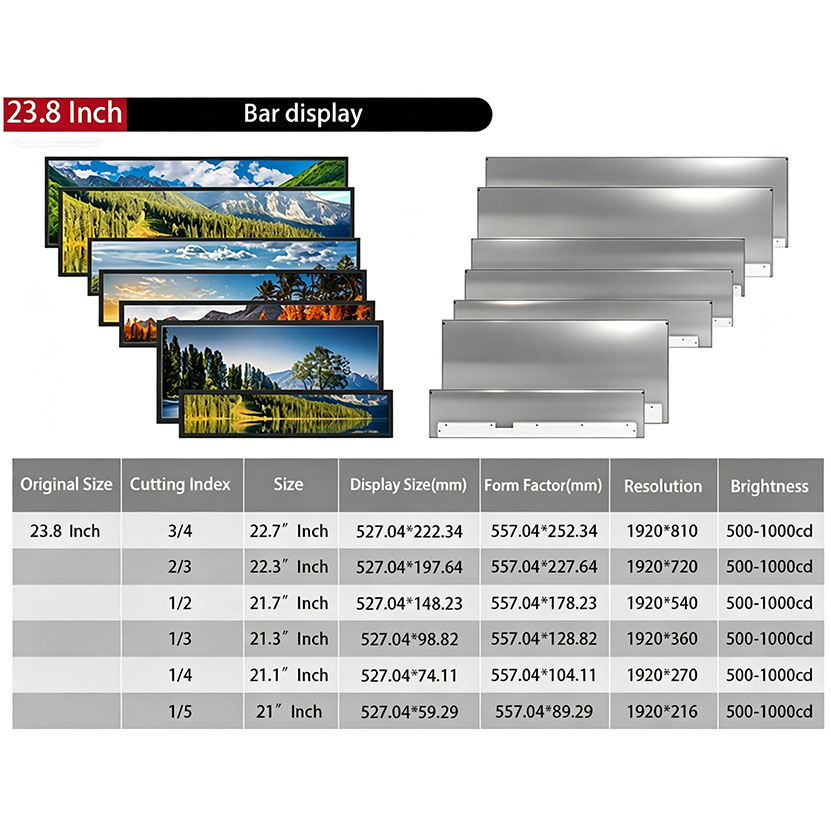

23.8 Inch Cuttable Strip Display Parameters
| Original Size | Cutting Index | Size | Display Size(mm) | Form Factor(mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 23.8 Inch | 3/4 | 22.7" Inch | 527.04*222.34 | 557.04*252.34 | 1920*810 | 500-1000cd |
| 2/3 | 22.3" Inch | 527.04*197.64 | 557.04*227.64 | 1920*720 | 500-1000cd | |
| 1/2 | 21.7" Inch | 527.04*148.23 | 557.04*178.23 | 1920*540 | 500-1000cd | |
| 1/3 | 21.3" Inch | 527.04*98.82 | 557.04*128.82 | 1920*360 | 500-1000cd | |
| 1/4 | 21.1" Inch | 527.04*74.11 | 557.04*104.11 | 1920*270 | 500-1000cd | |
| 1/5 | 21" Inch | 527.04*59.29 | 557.04*89.29 | 1920*216 | 500-1000cd |
23.8 Inch Cuttable Strip Display Parameters
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 23.8" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 23.8 | Power Input | DC 12V-5A |
| Display area (mm) | 527.04(H)×296.46(V) mm | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 93 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 527.04(H)×296.46(V) mm | ||
| Mounting | VESA100x100 | ||
| Bezel size (U/B/L/R) | 15/15/15/15 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
Bar-Type Stretched LCD Display OEM/ODM Product Layout Description
PRODUCT SPECIFICATION SHEET
Bar-Type Stretched LCD Display OEM / ODM Layout Description
Customization Brief for Stretched Bar LCD Screen
FORM FACTOR ILLUSTRATION
Screen Type
TFT-LCD Stretched Bar
Stretched Bar Display
Standard Sizes
7″ — 49″
Custom Non-standard Sizes Available
Aspect Ratio
≥ 3 : 1
Typical: 16:3 / 16:4.5
Brightness
400 — 2000 Nit
High Brightness Outdoor Version Optional
LAYOUT ZONE DIVISION
Primary Info Zone
Brand Logo, Main Title & Core Promotion Content, occupying 40–60% of the layout
Secondary Info Zone
Scrolling Subtitles, Price, Date & Time, Promotional Info, occupying 20–40% of the layout
Media Playback Zone
Image & Video Carousel, freely combined and divided with other zones
Auxiliary Function Zone
Weather Widget, QR Code, Countdown Timer, customized as per client requirements
Branding Customization
- Client provides layout design draft
- Mass production per drawings
- Print customer brand logo
- Low MOQ requirement
- Delivery lead time: 4–6 weeks
In-depth R&D Customization
- Factory participates in layout design
- Full customization on structure & software
- Exclusive mold development
- NDA confidentiality agreement required
- Delivery lead time: 8–16 weeks
CUSTOMIZATION CHECKLIST
TYPICAL APPLICATION SCENARIOS
Experience
Extensive experience in high-brightness bar LCD display integration
HITULCD has accumulated extensive practical experience in the development and integration of 23.8-inch cuttable bar LCD displays for commercial OEM and industrial display projects.
Our experience is built around solving real-world integration challenges where standard LCD panels cannot satisfy customized installation, brightness, or structural requirements.
Experience developed through professional OEM projects
HITULCD understands that stretched LCD displays require advanced engineering beyond standard display assembly.
We focus on the complete integration process including high-brightness optimization, thermal management, signal compatibility, structural adaptation, and long-term operational stability.
Our engineering experience supports customers who require reliable custom display solutions for demanding commercial environments.
Extensive experience with stretched and cuttable LCD structures
Strong experience developing bar-type and ultra-wide LCD display systems for non-standard installation applications.
Familiar with integration requirements for retail shelf displays, transportation systems, smart vending machines, industrial equipment, and digital signage platforms.
Engineering teams understand the importance of maintaining stable image quality and brightness consistency across stretched LCD formats.
High-brightness display engineering experience
Extensive experience with 500–1000 nits high-brightness LCD technology designed for commercial visibility applications.
Optimized backlight structures help improve display readability under strong ambient lighting conditions.
Focus on stable brightness performance and long-term operational reliability for continuous commercial usage.
OEM integration and customization capability
Strong OEM project experience supporting customized display dimensions, interfaces, and enclosure structures.
Familiar with LVDS, HDMI, VGA, and industrial control board integration for commercial display systems.
Flexible engineering support helps customers simplify system integration and reduce development complexity.
Reliable long-term deployment experience
HITULCD understands the operational requirements behind commercial display systems running for extended periods.
Engineering designs focus on thermal efficiency, continuous operation stability, and reliable display performance.
Experience supporting European and international OEM customers who require dependable product quality and professional technical communication.
Why professional customers choose HITULCD
Extensive experience in high-brightness stretched LCD technology
Strong capability in custom OEM display integration
Practical understanding of commercial and industrial deployment environments
Flexible engineering support for customized projects
Reliable technical communication for international customers
HITULCD is more than a display supplier — we are an experienced engineering-driven manufacturer focused on delivering stable, customized, and integration-ready high-brightness LCD solutions for professional OEM applications.
Expertise
Advanced expertise in high-brightness cuttable bar LCD solutions
HITULCD provides professional expertise in the engineering and integration of 23.8-inch cuttable bar LCD displays designed for commercial OEM and industrial signage applications.
Our expertise is focused on helping customers develop customized stretched display systems with reliable brightness performance, stable operation, and flexible integration capability for modern commercial environments.
Expertise built around professional display engineering
Specialized expertise in stretched and cuttable LCD display architecture for non-standard commercial installations.
Strong understanding of how to optimize brightness uniformity, thermal performance, signal stability, and mechanical reliability in bar-type LCD systems.
Engineering-focused development process designed for OEM integration instead of standard consumer display applications.
Expertise in stretched LCD structural integration
Extensive experience with ultra-wide and bar-format LCD solutions for space-constrained and customized display environments.
Familiar with deployment requirements for retail shelf-edge displays, transportation signage, vending systems, industrial control equipment, and digital information systems.
Optimized structural design helps maintain stable image quality and reliable long-term operation in stretched display formats.
High-brightness display optimization expertise
Expertise in developing 500–1000 nits high-brightness LCD solutions for commercial environments with strong ambient lighting conditions.
Advanced backlight optimization improves display readability, brightness consistency, and operational stability.
Experience with optical enhancement technologies designed to improve visual performance in commercial signage applications.
OEM customization and integration capability
Strong expertise supporting custom OEM display integration projects with flexible dimensional and structural requirements.
Familiar with multiple interface and control systems including LVDS, HDMI, VGA, and industrial controller integration.
Flexible engineering support for customized mounting structures, enclosure adaptation, and project-specific operational requirements.
Reliability expertise for continuous commercial operation
Engineering designs focus on thermal management, continuous operation stability, and long service lifespan.
Expertise in reducing risks related to heat accumulation, brightness inconsistency, and long-term operational degradation.
Practical understanding of the reliability requirements behind professional commercial display deployments.
What defines HITULCD expertise
Professional expertise in high-brightness stretched LCD engineering
Strong capability in custom OEM display integration
Advanced understanding of thermal, optical, and structural optimization
Practical experience with commercial and industrial deployment environments
Reliable engineering communication for international OEM customers
HITULCD is not only a display manufacturer — we are an engineering-oriented partner delivering professionally integrated stretched LCD solutions designed for customers who require long-term reliability, customization flexibility, and commercial-grade display expertise.
