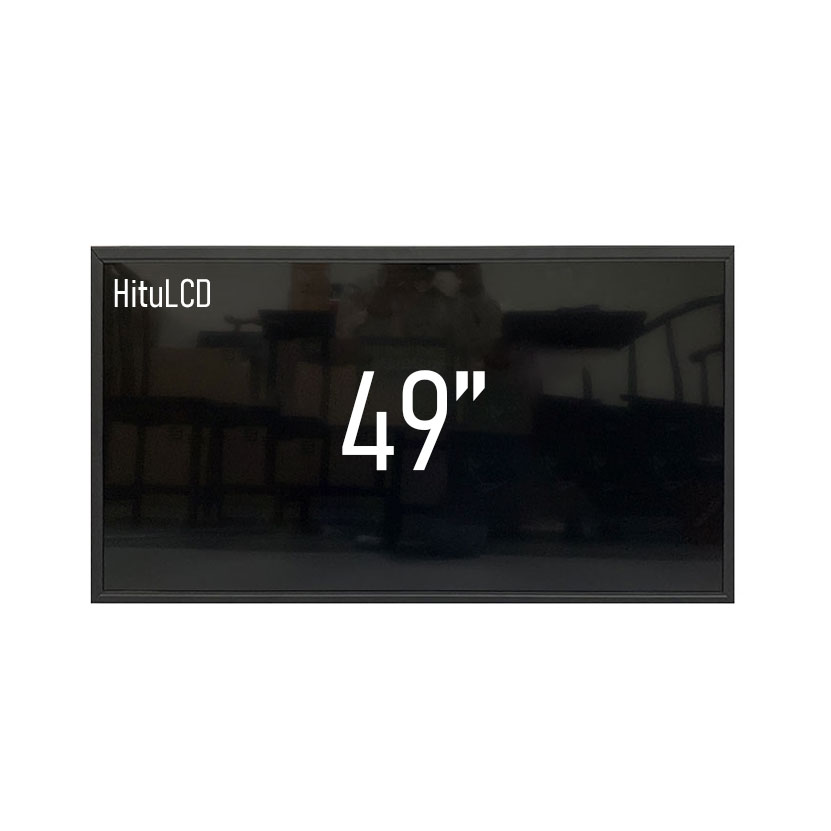

49 Inch 3000nits Sunlight Readable LCD Panel –Outdoor Displays
MODEL: HT490FHD-D3000
BRIGHTNESS
3000
nits
SIZE
49
inch
RESOLUTION
1920×1080
ASPECT RATIO
16:9
Technical Highlights
- 2000–5000 nits brightness with enhanced contrast performance
- Wide temperature range and long-life backlight system
- Semi-custom design for faster project deployment
certification standard
ISO9001
CE
FCC
ROSH
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 49" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA，DP |
| Size | 49 | Power Input | AC 100~240V |
| Display area (mm) | 1073.78×604 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 45 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 150W | ||
| Dimensions (mm) | 1106.4x641.6x51（H*V*Dmm） | ||
| Mounting | VESA600x500 | ||
| Bezel size (U/B/L/R) | 14.8/19.8/14.8/14.8 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 12KG | ||
