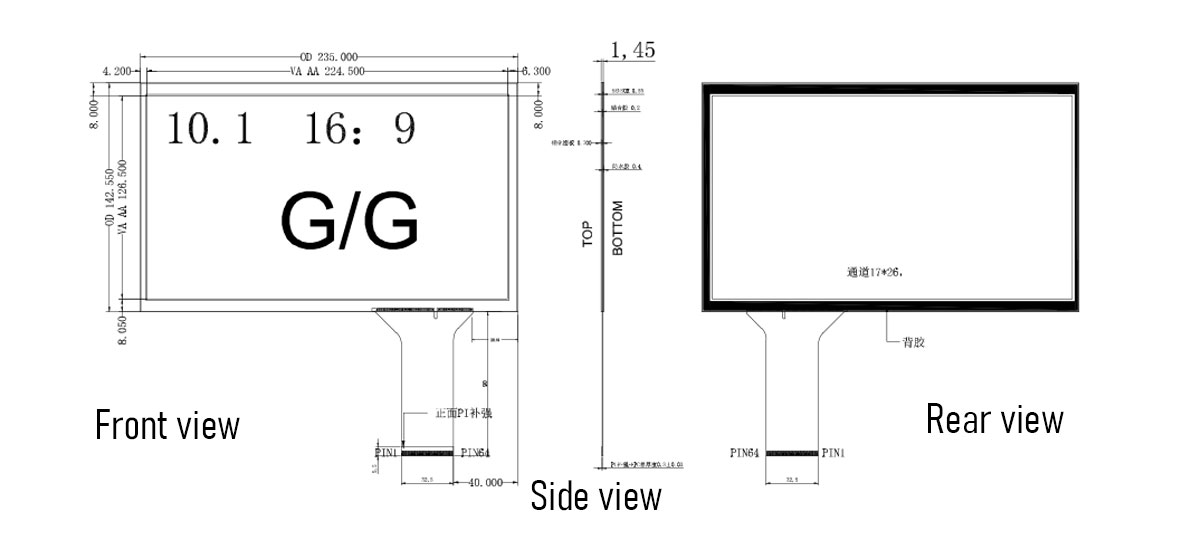

10.1 Inch Tempered Glass Touchscreen 16:9
MODEL: HT-51494
BRIGHTNESS
0
nits
SIZE
inch
RESOLUTION
ASPECT RATIO
16:9
Technical Highlights
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| No. | Item | Specification |
|---|---|---|
| 1 | Operating Conditions | DC 5V |
| 2 | Supported Operation | Multi-touch |
| 3 | Accuracy | +/-1mm @ 10mm |
| 4 | Surface Hardness | >6H |
| 5 | Operating Temperature | -20℃~+70℃ |
| 6 | Storage Temperature | -40℃~+85℃ |
| 7 | Transmittance | >84% |
| 8 | Structure Type | G/G |
| 9 | Service Life | 35,000,000 touches |
| 10 | Material Compliance | RoHS Compliant |
| 11 | ESD (Air Discharge) | ±4KV |
| 12 | Unspecified Tolerance | ±0.2mm |
