Open Frame Monitor CUSTOMIZABLE

75 Inch Open Frame Digital Signage Display

MODEL: WD750D-M2

BRIGHTNESS 3000 nits
SIZE 75 inch
RESOLUTION 3840*2160
ASPECT RATIO 16:9

Technical Highlights

  • Bulk order lead time: 10~15 days
  • 21.5~55" packed individually in heavy-duty carton; 65" packed individually in honeycomb carton
  • Custom other colors: MOQ 20pcs, lead time 15 days

certification standard

ISO9001 CE FCC ROSH

Need customized solution?

Our engineering team is always ready to provide you with professional technical support and flexible customized services.

Understand light customization services

Technical Specifications

CategoryParameters
ModelWD750D-M2 (With Circuit Box)
AppearanceColor: Black panel & black bezel / Customizable
Dimension (L*W*H): 1674*953*72.3 mm
Material: Sheet metal
Installation: Wall-mounted, Floor-standing, Ceiling-mounted
PackagePackage Size: 187*34*116 cm
Weight: Net 31.5kg, Gross 36.5kg
DisplayPanel: 75" TFT LED
Display Area / Aspect Ratio: 1649.7mm × 927.9mm / 16:9
Max Resolution: 3840 × 2160
Brightness: 3000cd/m², Auto linear light sensing
Contrast Ratio: 1300:1
Viewing Angle: Up/Down/Left/Right 89°/89°/89°/89°
Response Time: 6ms
Color Depth: 16.7M Colors
Power & Power ConsumptionInput: 100V~240V AC, Power ≤ 420W
Main Board & InterfacesSoC: RK3568, 4-core CPU @1.8GHz, 4-core Mali-T764 GPU
       Memory: 2GB DDR3, Storage: 16GB (Expandable)
       Interfaces: 2 External USB, 4 Built-in USB, 1 SD Card Slot, 1 RJ45
       1 LVDS, 1 HDMI 2.0 (4K@60Hz output, customized)
       Connectivity: Wi-Fi, Bluetooth, 3G/4G expandable
FunctionsOperating System: Android 9 / Android 11
Menu Language: Chinese, English, Russian, French, Spanish and other languages
Video Formats: RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV
Audio Formats: MPEG-1 Layers I/II/III 2.0, MPEG-4 AAC-LC 5.1, HE-AAC 5.1, BSAC 2.0, WAV, 24-bit linear PCM 7.1
Image Formats: BMP, JPEG, PNG, GIF
Other Formats: PDF, PPT, SWF, Text, Real-time data stream
Screen Partition: Video area, Image & text area, Scrolling subtitle, LOGO area, Date, Time, Week, Weather forecast, Real-time image & video area
Firmware Upgrade: Update via SD card
System Management: Unified management, Group management, Multi-user management, Remote management, Timing power on/off
Remote Control: Remote power on/off, Remote program editing & update, Remote status monitoring
Playback Mode: Loop playback, Timed playback, Interrupt playback
System Architecture: Advanced B/S (Browser/Server) architecture
Network & Audio: LAN, WAN, Wi-Fi, 3G; Built-in dual mini speakers
OthersService Life: 50000 hours
Operating Temperature: -10℃ ~ 50℃
Storage Temperature: -20℃ ~ 60℃
Operating Humidity: 5% ~ 90%
Storage Humidity: 5% ~ 90%
Security & Standard: Support hardware dongle, login password, control password and multi-level user permissions. All components and packaging materials comply with international environmental standards.

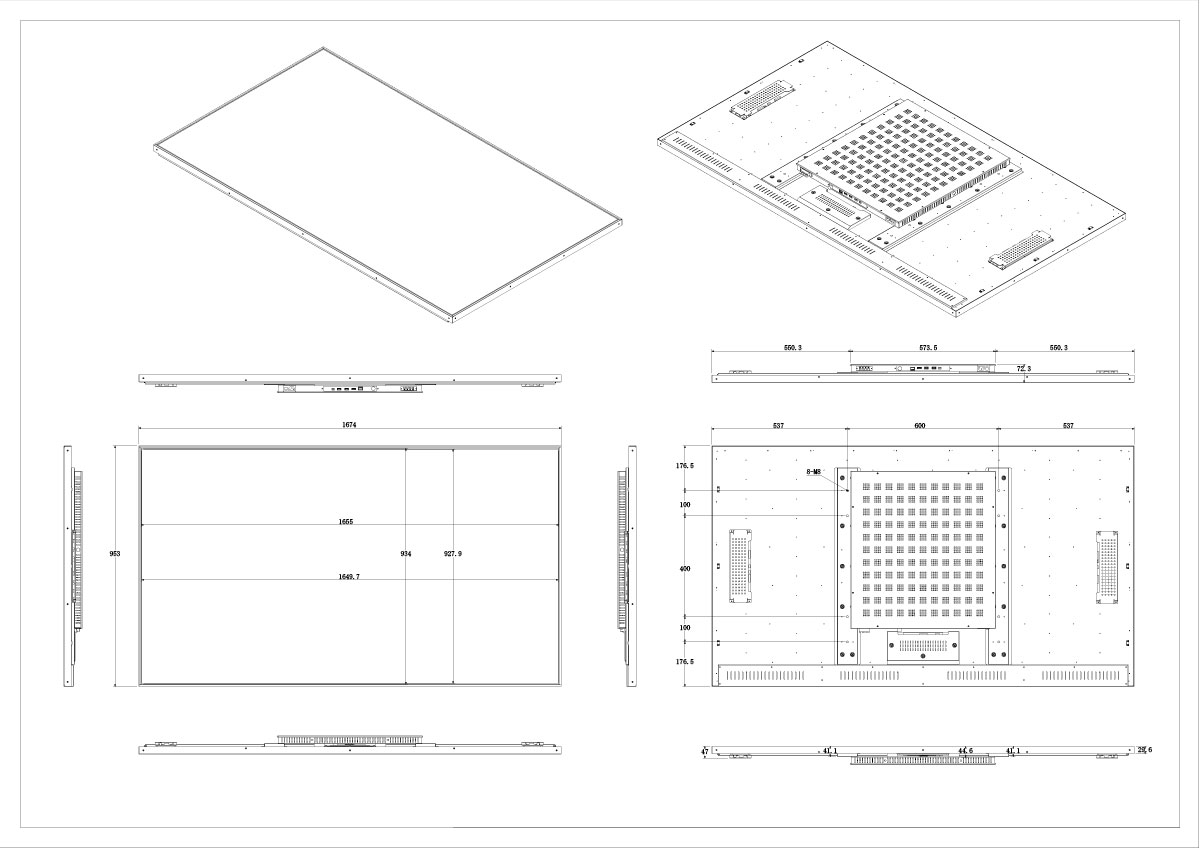

75-inch-open-frame-display

STRETCHED BAR DISPLAY · OPEN FRAME

75" Open Frame Digital Signage Display

Model: WD750D-M2  ·  Android 9 / 11  ·  24/7 Rated

3000NITS BRIGHTNESS
4K3840 × 2160
16:9ASPECT RATIO
50KHRS SERVICE LIFE
CEFCCRoHSISO 9001

Bulk order lead time: 10–15 business days  ·  Sample units available  ·  OEM/ODM supported


PRODUCT ADVANTAGES

Built for demanding B2B deployments

01
High-Brightness, All-Day Visibility

At 3000 cd/m² — roughly six times a standard commercial display — this panel cuts through ambient light in airports, transit concourses, flagship retail floors, and sun-exposed lobbies. Auto linear light sensing continuously adjusts output to preserve backlight lifespan without manual calibration.

02
Integrated Android Platform

The onboard RK3568 SoC (quad-core 1.8 GHz, 2 GB RAM, 16 GB eMMC) eliminates the need for an external media player. Supports HDMI 2.0 passthrough for AV integrators who prefer a dedicated source. Android 11 provides a familiar deployment baseline for enterprise CMS software.

03
Remote Fleet Management

Browser/Server architecture means zero client software to install. IT teams can schedule content, push firmware, reboot individual units, or manage user permission tiers from any network location. Timed power on/off reduces energy costs for overnight deployments.

04
Flexible Connectivity

Dual external USB, 4 internal USB, SD card, RJ45 Ethernet, LVDS, HDMI 2.0, and optional 3G/4G modem. Supports LAN, WAN, and Wi-Fi simultaneously. Dual built-in speakers reduce peripheral cabling. Every port can be accessed without removing the display from its mount.

05
Wide Operating Temperature

Rated −10 °C to +50 °C operating, −20 °C to +60 °C storage. Suitable for unconditioned spaces, covered outdoor canopies, and refrigerated aisle-end placements. 50,000-hour backlight life equates to over five years of 24/7 operation before first-service intervals.

06
OEM/ODM from 20 Units

Custom bezel colour, interface layout, logo silk-screen, brightness tier, and operating system image. Honeycomb carton packaging at 65"+ protects units during intercontinental freight. Pre-production samples available before committing to full runs.


APPLICATION SCENARIOS

Where this display is deployed

Retail & QSR Menu Boards

3000-nit brightness ensures promotional content remains vivid under powerful in-store lighting. 16:9 landscape orientation matches standard content templates used by major QSR and grocery chains. Remote playlist scheduling supports daypart pricing without on-site technician visits.

Transportation & Wayfinding

Airport terminals, train stations, and bus depots require around-the-clock operation and fast content updates. The open-frame chassis fits into custom kiosk enclosures designed by systems integrators. VESA and non-standard mounting patterns available on request.

Corporate Lobbies & Offices

Floor-to-ceiling glass lobbies flood displays with indirect daylight. At 3000 nits, this panel delivers legible wayfinding and brand content where a 500-nit consumer display would wash out entirely. Multi-user CMS access lets marketing teams publish content without involving IT.

Hospitality & Venue Signage

Hotels, convention centres, and sports venues benefit from a single platform managing hundreds of screens across properties. B/S remote management, grouped scheduling, and interrupt-playback for live announcements reduce operational staffing overhead significantly.

Healthcare & Public Institutions

Waiting area information displays, patient flow boards, and emergency notice systems demand reliable 24/7 operation. Hardware-dongle security, multi-level user permissions, and login password protection meet the compliance requirements common in healthcare and government environments.

Industrial & Control Room

Wide-temperature rating and HDMI 2.0 input support control-room monitoring applications where feeds from multiple sources are displayed simultaneously. The sheet-metal chassis is compatible with rack-mount and panel-mount adapters fabricated by local integrators.


TECHNICAL DOCUMENTATION

Full Technical Specifications

PANEL
PANEL TECHNOLOGY75" TFT LED (IPS)
ACTIVE DISPLAY AREA1649.7 mm × 927.9 mm
ASPECT RATIO16:9
MAX RESOLUTION3840 × 2160 (4K UHD)
OPTICAL PERFORMANCE
BRIGHTNESS3000 cd/m² — with auto linear ambient light sensing
CONTRAST RATIO1300:1
VIEWING ANGLE89° / 89° / 89° / 89° (Up / Down / Left / Right)
RESPONSE TIME6 ms
COLOR DEPTH16.7 million colors (8-bit)

OEM / ODM SERVICES

Custom configurations for integrators and resellers

What can be customised

  • Bezel and panel colour (MOQ 20 pcs, 15-day lead time)

  • Brightness tier — from 500 nits up to 3000+ nits

  • Interface layout — add or reposition ports to suit enclosure design

  • Operating system image — pre-loaded CMS, kiosk lockdown, custom launcher

  • Logo silk-screen on chassis and startup boot screen

  • RAM / storage upgrades (4 GB / 32 GB available)

  • 4G/LTE modem integration for locations without fixed network

  • Custom VESA / non-standard mounting patterns

Working with HituLCD

  • Sample units available before committing to production runs

  • Dedicated engineering contact throughout project lifecycle

  • Bulk order lead time: 10–15 business days (standard config)

  • Pre-shipment QA inspection available; third-party inspection supported

  • Export to US, EU, UK, AU — CE and FCC documentation provided

  • DDP and FOB shipping terms available

For system integrators: HituLCD can supply displays pre-configured with your CMS agent, locked to your management platform, and shipped in co-branded packaging. Minimum configuration changes start at MOQ 20 pcs. Contact the engineering team with your full requirements for a detailed feasibility and pricing response within 24 hours.
