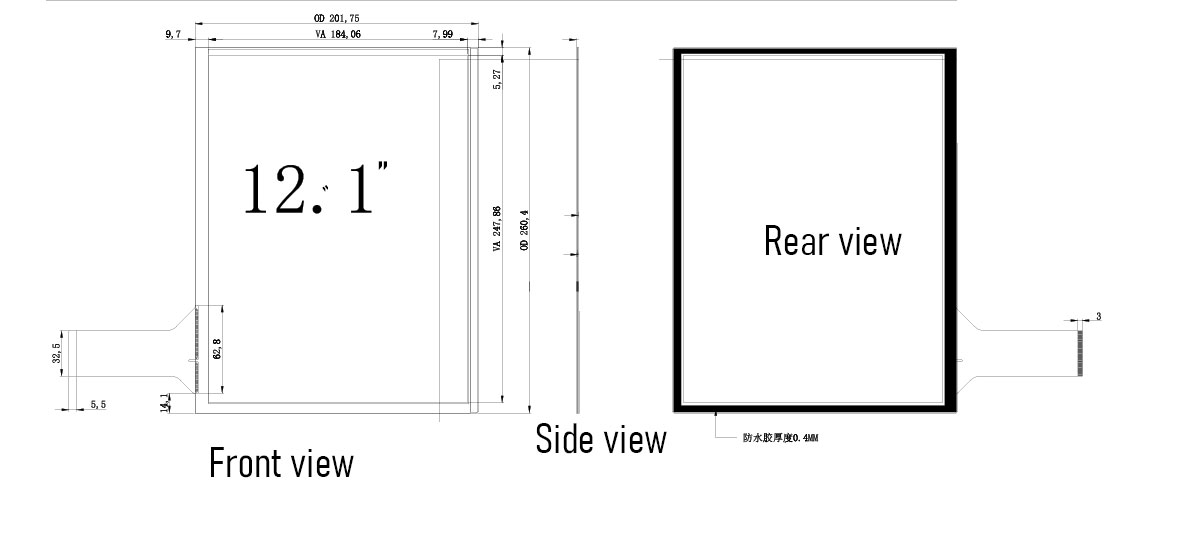

12.1 Inch Tempered Glass Touchscreen 4:3
MODEL: HT-51325
BRIGHTNESS
0
nits
SIZE
inch
RESOLUTION
ASPECT RATIO
Technical Highlights
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| No. | Item | Specification |
|---|---|---|
| 0 | Weight | 0.235 kg |
| 1 | Operating Conditions | DC 2.8~3.6V |
| 2 | Supported Operation | Multi-touch |
| 3 | Accuracy | +/-1mm @ 10mm |
| 4 | Surface Hardness | >6H |
| 5 | Operating Temperature | -20℃~+70℃ |
| 6 | Storage Temperature | -40℃~+85℃ |
| 7 | Transmittance | >84% |
| 8 | Structure Type | G/G |
| 9 | Service Life | 35,000,000 touches |
| 10 | Material Compliance | RoHS Compliant |
| 11 | ESD (Air Discharge) | ±4KV |
| 12 | Unspecified Tolerance | ±0.2mm |
