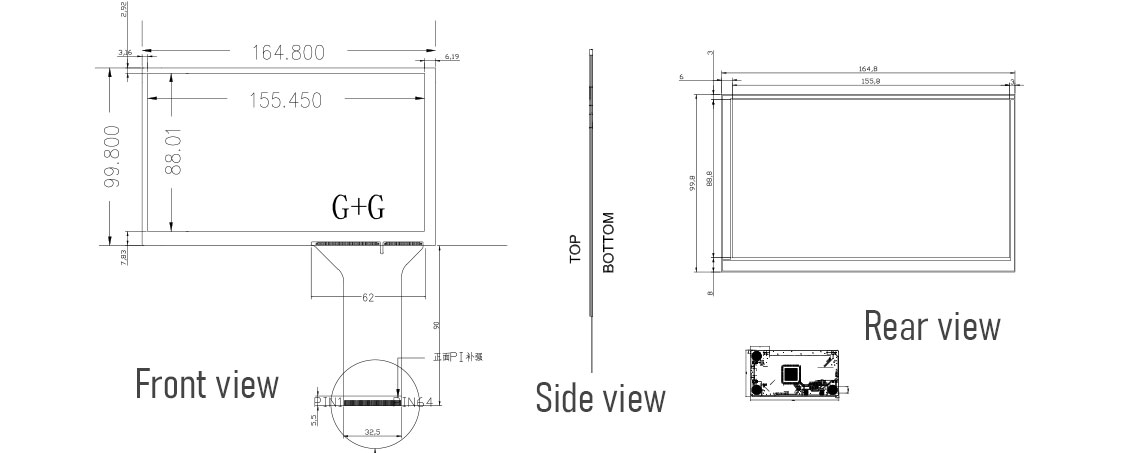

7 Inch Tempered Glass Touchscreen 16:9
MODEL: HT-8550
BRIGHTNESS
0
nits
SIZE
7
inch
RESOLUTION
ASPECT RATIO
16:9
Technical Highlights
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

| NO. | Item | Specification |
|---|---|---|
| 1 | Working Condition | DC 5V |
| 2 | Supported Operation | Multi-point Touch |
| 3 | Accuracy | +/- 1mm @ 10mm |
| 4 | Surface Hardness | > 6H |
| 5 | Operating Temperature | -20℃ ~ +70℃ |
| 6 | Storage Temperature | -40℃ ~ +85℃ |
| 7 | Transmittance | > 84% |
| 8 | Structure Type | G/G |
| 9 | Service Life | 35,000,000 times |
| 10 | Material Compliance | RoHS Compliant |
| 11 | ESD | Air: ±4KV / Contact: ±2KV |
| 12 | Unspecified Tolerance | 0.2mm |
| 13 | Channel Count | 26 × 17 |
| 14 | IC Model | AP8553 |
