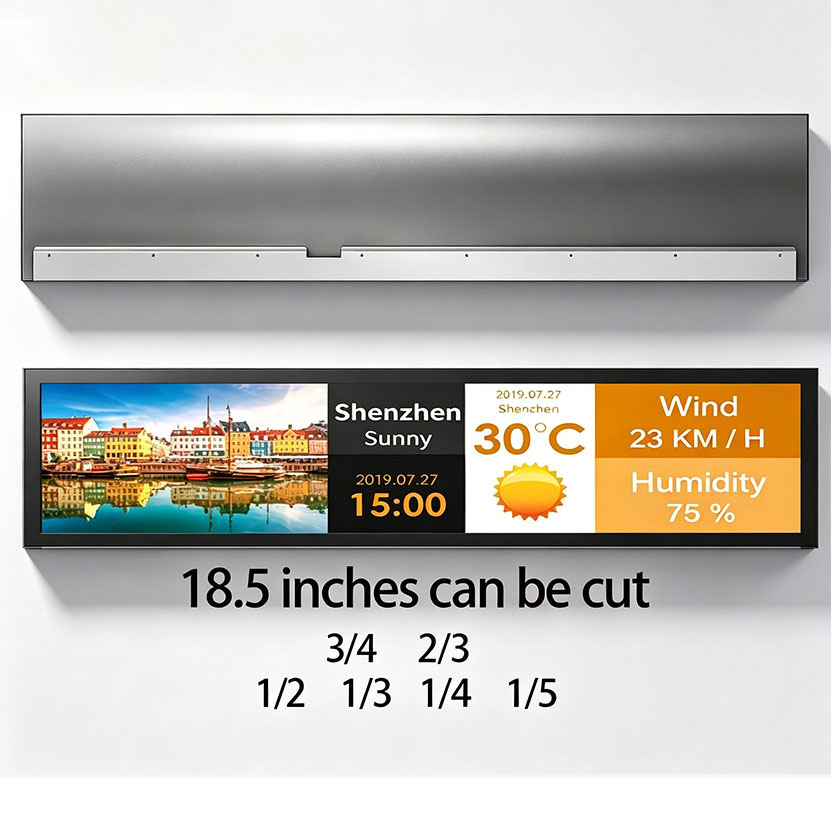

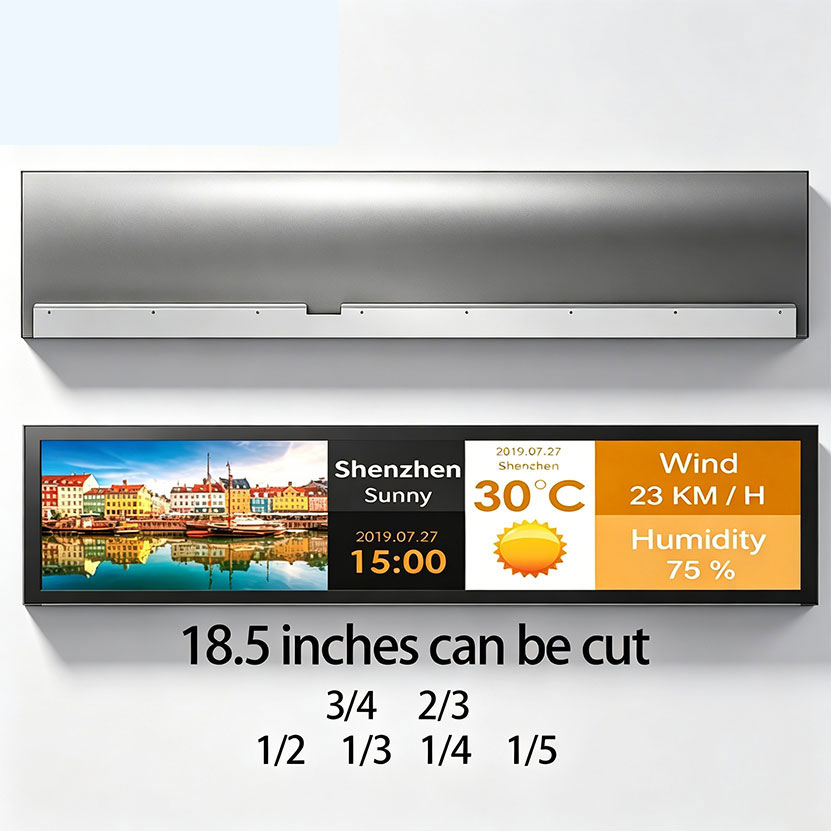

18.5 Inch Cuttable Bar LCD for Custom OEM Projects
MODEL:
BRIGHTNESS
1000
nits
SIZE
18.5
inch
RESOLUTION
1366*Cuttable
ASPECT RATIO
Cuttable
Technical Highlights
- Flexible Cuttable Design for Custom Aspect Ratios
- Uniform Brightness & Image Consistency After Cutting
- Industrial-Grade Reliability for OEM Integration
certification standard
ISO9001
CE
FCC
ROSH
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

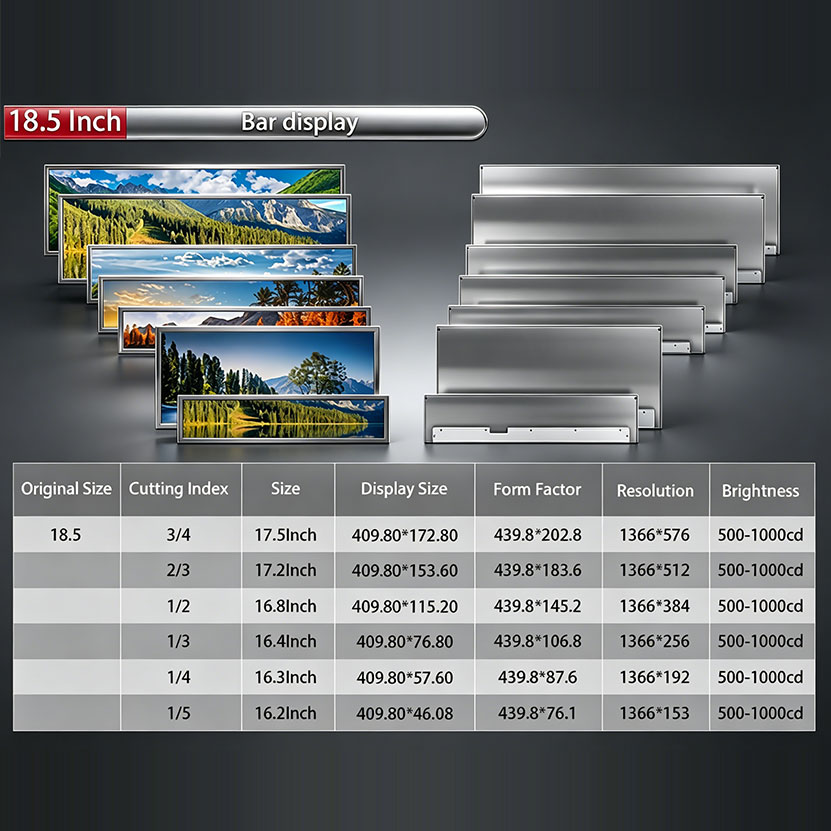

18.5 Inch Cutable Strip LCD Screen Cutting Parameters
| Original Size | Cutting Index | Size | Display Size | Form Factor | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 18.5 | 3/4 | 17.5Inch | 409.80*172.80 | 439.8*202.8 | 1366*576 | 500-1000cd |
| 2/3 | 17.2Inch | 409.80*153.60 | 439.8*183.6 | 1366*512 | 500-1000cd | |
| 1/2 | 16.8Inch | 409.80*115.20 | 439.8*145.2 | 1366*384 | 500-1000cd | |
| 1/3 | 16.4Inch | 409.80*76.80 | 439.8*106.8 | 1366*256 | 500-1000cd | |
| 1/4 | 16.3Inch | 409.80*57.60 | 439.8*87.6 | 1366*192 | 500-1000cd | |
| 1/5 | 16.2Inch | 409.80*46.08 | 439.8*76.1 | 1366*153 | 500-1000cd |
18.5 Inch Cuttable Strip LCD Screen Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 18.5" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA，DP |
| Size | 18.5 | Power Input | AC 100~240V |
| Display area (mm) | 698.4(H)x 392.85(V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 718x412x14 | ||
| Mounting | VESA400x200 | ||
| Bezel size (U/B/L/R) | 7.9/7.9/7.9/7.9 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
Related solutions
This product is suitable for the following industry application scenarios
10.1 Inch High Brightness LCD Display for Smart Retail Cabinets | Real-World Deployment Case in Automated Merchandising Systems
10.1-inch high brightness LCD display engineered f...
view
10.1 Inch High Brightness LCD Display for Outdoor EV Charging Stations – Industrial Grade
High brightness 10.1" LCD display for EV char...
view
Industrial-Grade 13.3 Inch High Brightness Screen | Outdoor Operation Case
Facing outdoor display failures? This 13.3" h...
viewRelated Products
You may also be interested in the following products
1000 Nits
Stretched Bar LCD Screen

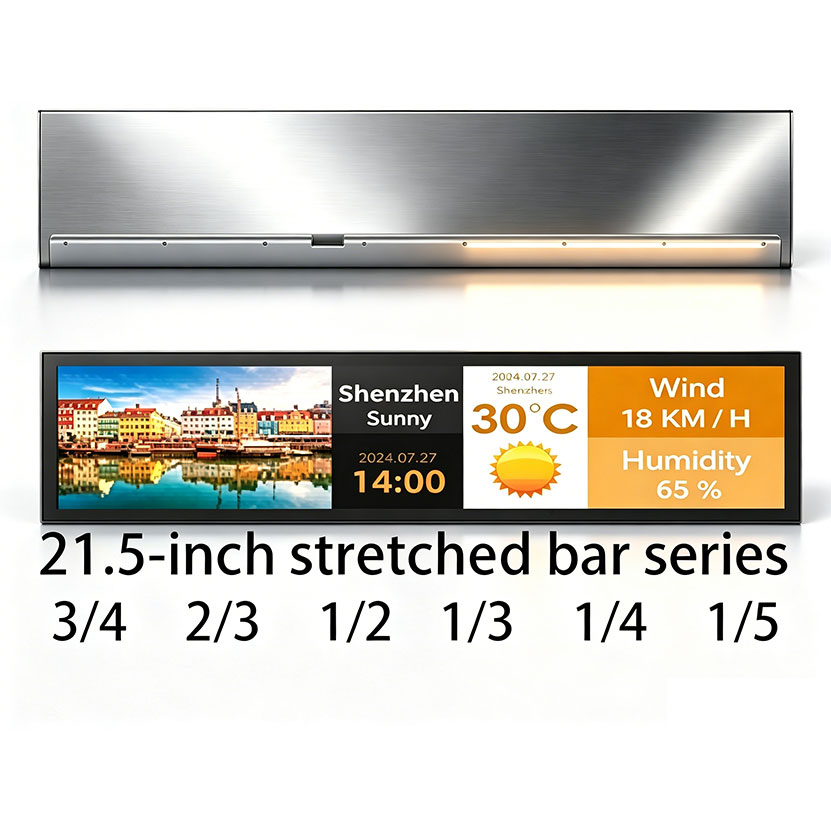

21.5" Cuttable Bar LCD Display | Custom Stretched Panel
