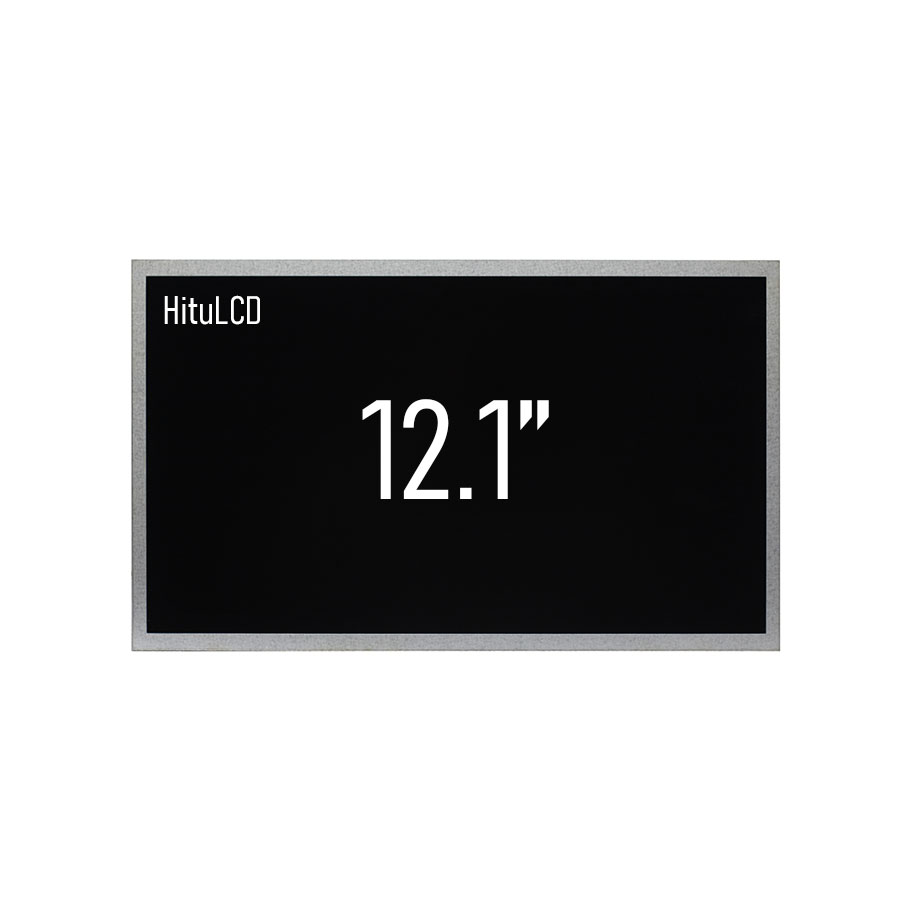

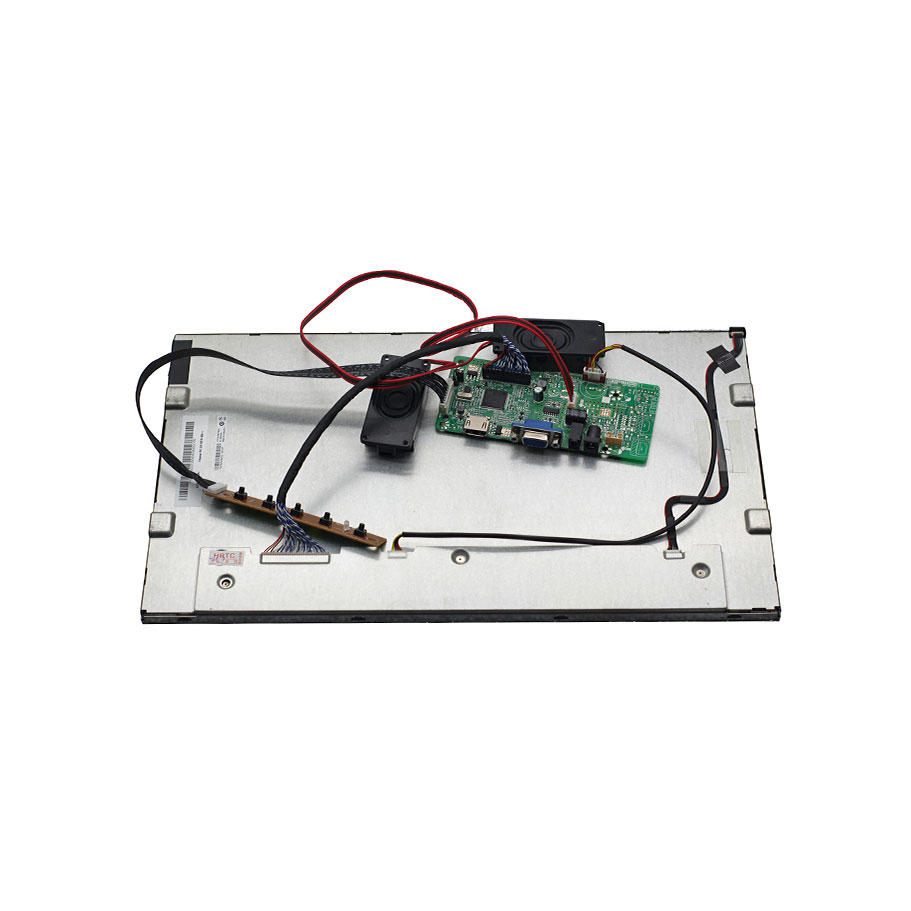

12.1 Inch High Brightness TFT LCD Module Screen
MODEL: HT121TD2-1000
Technical Highlights
- Exceptional Sunlight Readability with Optical Enhancement
- Industrial-Grade Durability for Mission-Critical Applications
- Advanced Integration Flexibility with Full OEM/ODM Support
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Parameter | Details |
|---|---|
| Product Brand | HituLCD |
| Product Series | High Brightness LCD 12.1-inch 16:10 |
| Product Model | HT121TD2-1000 |
| Key Description | Hanntu 12.1-inch high brightness LCD, 16:10 widescreen, 1280*800, 1000cd brightness |
| Product Category | Graphic Type |
| Product Tags | Color TFT LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable LCD |
| Application Products | Industrial, Digital Signage, Outdoor High Brightness |
| Panel Type | a-Si TFT-LCD |
| Product Composition | LCD Module |
| Panel Size | 12.1" |
| Resolution | 1280×800 |
| Aspect Ratio | 16:10 (W:H) |
| Physical Shape | Flat Rectangle |
| Display Size (A.A) | 261.12 (W) × 163.2 (H) mm |
| Outline Dimension | 283 (W) × 185.1 (H) mm |
| Max Thickness | 9.7 mm |
| LCD Family | TN Soft Panel |
| Polarizer | Transmissive |
| Panel Brightness | 1000 (Typ.) |
| Transmissive Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 85/85/80/80 (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Display Colors | 262K/16.7M |
| Backlight Type | WLED |
| Signal Type | LVDS |
| Signal Pins | 20 Pins |
| Touch Screen | Non-Touch |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -30 ~ 80 °C |
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
12.1 Inch High Brightness TFT LCD Module – Sunlight Readable Industrial Display Solution
Built for Outdoor Visibility. Engineered for Industrial Reliability.
Our 12.1-inch high brightness TFT LCD module is designed for demanding environments where standard displays fail. With up to 1000+ nits brightness, wide temperature tolerance, and long-life LED backlight, this module ensures clear visibility even under direct sunlight.
Ideal for OEM integration in kiosks, EV chargers, medical systems, and industrial HMIs.
Why This 12.1” High Brightness LCD Stands Out
1. True Sunlight Readability (1000–1500 Nits)
Engineered for outdoor and high ambient light environments, this display delivers excellent readability without washing out.
High brightness up to 1500 nits (customizable)
Enhanced contrast for clear image depth
Optional optical bonding / anti-glare / AR coating
👉 Perfect for: outdoor kiosks, fuel dispensers, transit displays
2. Industrial-Grade Reliability (24/7 Operation)
Designed for continuous operation in harsh environments.
Wide operating temperature: -20°C to +70°C (custom up to -30~+80°C)
LED backlight lifespan: 50,000–70,000+ hours
Stable performance for long-term deployment
👉 Built for mission-critical systems
3. Wide Viewing Angle with IPS Technology
Consistent image quality from all directions.
Viewing angle up to 178° (IPS panel)
Accurate color reproduction
No color shift in multi-user environments
👉 Ideal for public-facing interfaces
4. Flexible Integration for OEM/ODM Projects
Fully customizable to match your system requirements.
Interface options: LVDS / eDP / HDMI / MIPI
Touch options: PCAP / Resistive
Brightness tuning: 500–2000+ nits
Mechanical & housing customization
👉 Seamless integration into your product
Typical Applications
Designed for real-world industrial and commercial deployment:
EV Charging Stations
Outdoor Self-Service Kiosks
Fuel Dispensers
Industrial Control Panels (HMI)
Medical Equipment Displays
Marine & Transportation Systems
These applications require high brightness + durability + stability, which standard consumer displays cannot deliver.
Technical Specifications (Typical)
| Parameter | Specification |
|---|---|
| Screen Size | 12.1 Inch |
| Resolution | 1024×768 / 1280×800 |
| Brightness | 1000–1500 nits |
| Contrast Ratio | 700:1 – 1000:1 |
| Viewing Angle | 85°/85°/85°/80° |
| Interface | LVDS (default), optional HDMI/eDP |
| Operating Temp | -20°C to +70°C |
| Storage Temp | -30°C to +80°C |
| Backlight Life | 50,000 – 70,000 hrs |
| Power Supply | 3.3V |
OEM / ODM Customization Capability
We support full customization based on your project requirements:
Hardware Customization
High brightness tuning (500–5000 nits)
Touch integration (PCAP / Resistive / No touch)
Cover glass (AR / AG / IK protection)
Interface & connector customization
Mechanical & Design
Open frame / metal housing
Waterproof / dustproof design (IP65 optional)
Mounting structure customization
Software & Branding
Boot logo customization
Firmware optimization
UI support (if bundled with controller board)
Quality Assurance & Certifications
We manufacture under strict quality control standards:
ISO9001 Certified Production
CE / RoHS Compliance
100% Aging Test Before Shipment
High/Low Temperature Testing
Vibration & Reliability Testing
👉 Ensuring stable performance in global deployments
Why Choose Us as Your LCD Partner
10+ Years Industrial Display Experience
Strong OEM / ODM Engineering Team
Fast Sampling (7–15 Days)
Stable Supply Chain for Long Lifecycle Projects
Global Export Experience (EU / US Markets)
Request a Quote
Looking for a reliable 12.1” high brightness LCD module for your project?
👉 Contact our engineering team today for:
Datasheet
Custom solution proposal
Sample availability
