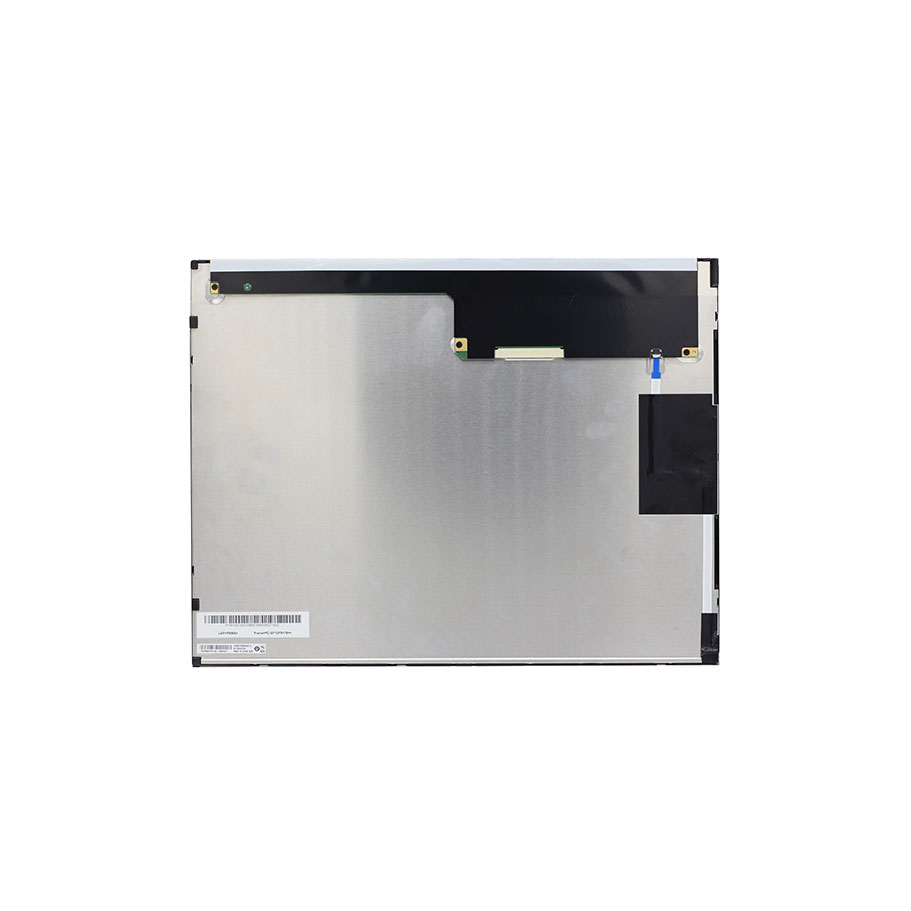

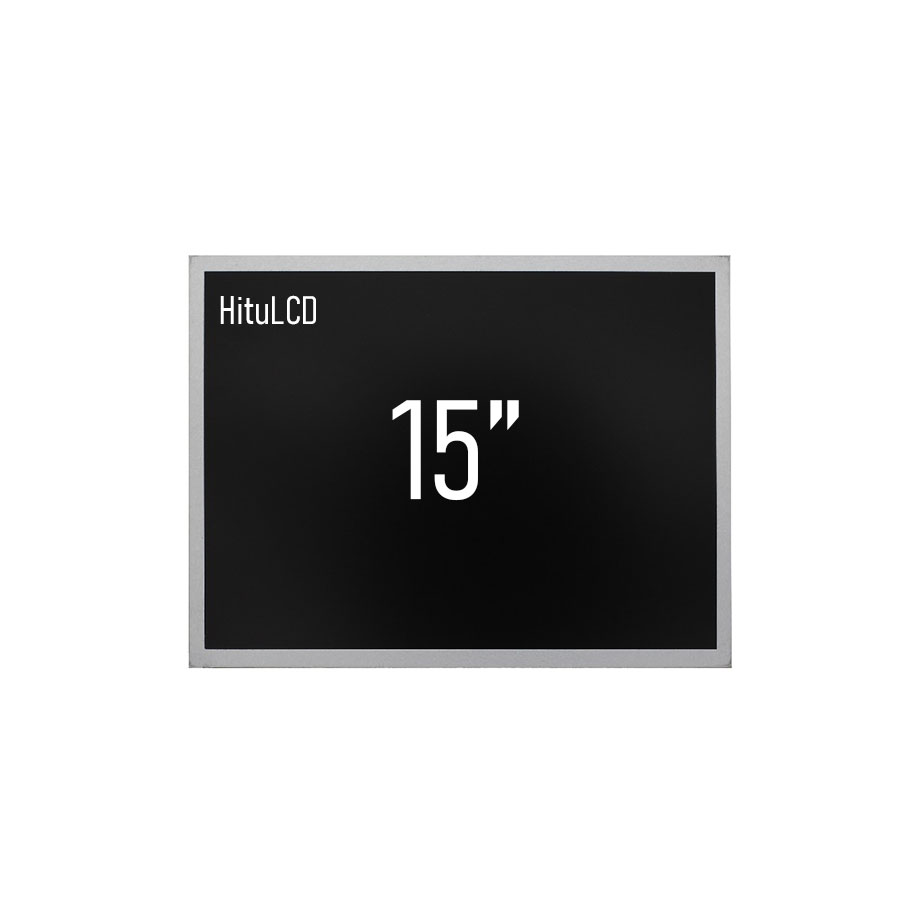

15 Inch High Brightness Industrial LCD Display, 4:3 Aspect Ratio.
MODEL: HT150XGE-1000
Technical Highlights
- True Sunlight Readability — Not Just “High Brightness”
- Built for 24/7 Mission-Critical Operation
- OEM-Ready Design — Built Around Your System, Not the Other Way Around
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Item | Specification |
|---|---|
| Brand | HituLCD |
| Product Series | 15" High Brightness LCD |
| Model | HT150XGE-1000 |
| Key Description | 15-inch high brightness LCD, 4:3 aspect ratio, 1024×768 resolution, 1000 nits brightness, with ambient light sensor for automatic brightness adjustment |
| Category | Graphic Type |
| Tags | Color TFT LCD, Wide Temperature LCD, High Brightness LCD, Sunlight Readable Display |
| Applications | Industrial Equipment, Digital Signage, Outdoor Displays |
| Panel Type | a-Si TFT-LCD |
| Module Type | LCD Module |
| Screen Size | 15" |
| Resolution | 1024 × 768 |
| Aspect Ratio | 4:3 (W:H) |
| Shape | Flat Rectangle |
| Active Area (A.A) | 304.1 (W) × 228.1 (H) mm |
| Outline Dimensions | 326.5 (W) × 253.5 (H) mm |
| Max Thickness | 12 mm |
| LCD Mode | TN (Normally White) |
| Polarizer | Transmissive |
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 700:1 (Typ.) |
| Viewing Angle | 85/85/80/80 (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| Display Colors | 262K / 16.7M |
| Backlight Type | WLED |
| Signal Interface | LVDS |
| Interface Pins | 20 Pins |
| Touch Panel | No Touch |
| Operating Temperature | -30 ~ 80 °C |
| Storage Temperature | -40 ~ 85 °C |
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom 7-Inch High-Brightness LCD Screen
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields of 7-inch Outdoor High Brightness LCD Display
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
15 Inch High Brightness Industrial LCD Display (4:3, 1024×768 XGA)
Engineered for Legacy Systems. Built for Modern Industrial Environments.
The 15-inch 4:3 industrial LCD remains the industry-standard solution for industrial control systems, perfectly matching legacy interfaces, CNC equipment, and rack-mounted devices.
With high brightness, long lifespan, and full OEM customization, this display is designed for reliable 24/7 operation in demanding environments.
Why 15” 4:3 Still Dominates Industrial Applications
Unlike consumer displays, industrial systems still rely on the 4:3 aspect ratio (1024×768) due to compatibility with existing software and control interfaces.
Native support for legacy HMI & PLC systems
Larger pixel pitch for better readability in factory environments
Proven mechanical stability and long-term supply availability
👉 This makes 15” 4:3 the lowest-risk replacement solution for industrial upgrades.
Sunlight Readable Performance — Up to 2000+ Nits
Designed for outdoor and high ambient light environments:
Brightness: 500–2000+ nits customizable
Readable under direct sunlight (>100,000 lux)
Optional anti-glare / optical bonding
Typical industrial displays are only 300–500 nits, while high-brightness models reach 1000–2000 nits+ for outdoor visibility
👉 Result: Clear visibility in kiosks, transportation systems, and outdoor equipment.
Industrial-Grade Reliability for 24/7 Operation
Built for continuous use in harsh environments:
LED backlight lifespan: 70,000–100,000 hours
Wide operating temperature: -20°C to +70°C
Stable performance under vibration, dust, and humidity
👉 Result: Lower failure rate, reduced maintenance cost, longer lifecycle.
Technical Specifications
| Item | Specification |
|---|---|
| Screen Size | 15.0 inch |
| Resolution | 1024 × 768 (XGA) |
| Aspect Ratio | 4:3 |
| Brightness | 500–2000+ nits (customizable) |
| Contrast Ratio | Up to 2000:1 |
| Viewing Angle | Up to 178° |
| Pixel Pitch | 0.297 mm |
| Backlight | LED, 70,000+ hours |
| Interface | LVDS / HDMI / VGA (optional) |
| Touch | PCAP / Resistive (optional) |
| Operating Temp | -20°C to +70°C |
OEM / ODM Customization Capabilities
We don’t just supply displays — we build solutions tailored to your system:
Brightness customization: 500–5000 nits
Touch integration: PCAP / Resistive
Interface: LVDS / HDMI / VGA / eDP
Mechanical & housing design
Optical bonding & anti-reflection
Firmware / logo / boot customization
👉 Faster integration. Lower engineering cost. Better product fit.
Typical Applications
This 15-inch industrial LCD is widely used in:
Industrial automation (HMI / PLC / CNC)
Outdoor kiosks & ticketing machines
Transportation systems (bus, rail, marine)
Medical & diagnostic equipment
Energy & power monitoring systems
Quality & Reliability Assurance
Strict industrial-grade quality control process
Long-term supply guarantee (5+ years)
Aging test, vibration test, temperature cycling
Compliance: CE / RoHS / FCC (optional)
👉 Designed for mission-critical applications, not consumer use.
Why Choose Us as Your OEM Display Partner
Over XX years industrial display experience
Stable global supply chain
Fast customization & engineering support
Proven export experience to Europe & North America
👉 We help reduce your project risk, cost, and time-to-market
Request a Quote / Custom Solution
Looking for a reliable 15” industrial LCD supplier?
👉 Contact us today for:
Datasheet
Sample availability
Custom project consultation
Related solutions
This product is suitable for the following industry application scenarios
Related Products
You may also be interested in the following products
1000 Nits

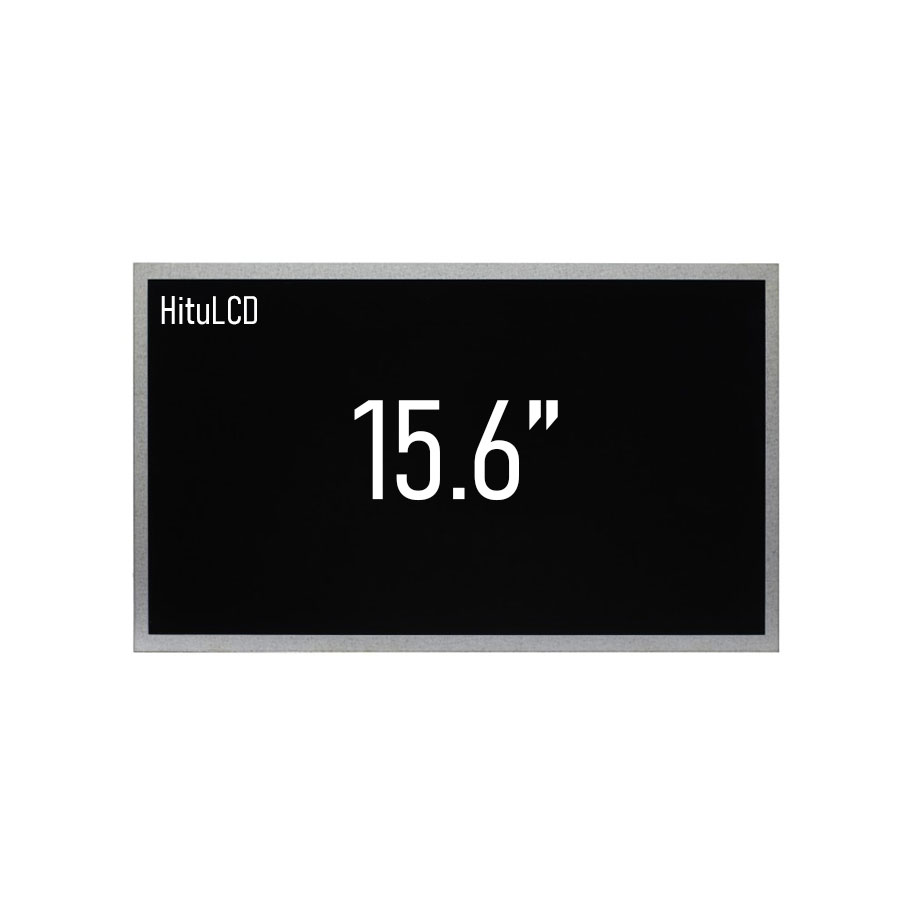

15.6 Inch Industrial High Brightness Oem Lcd Display Supplier
