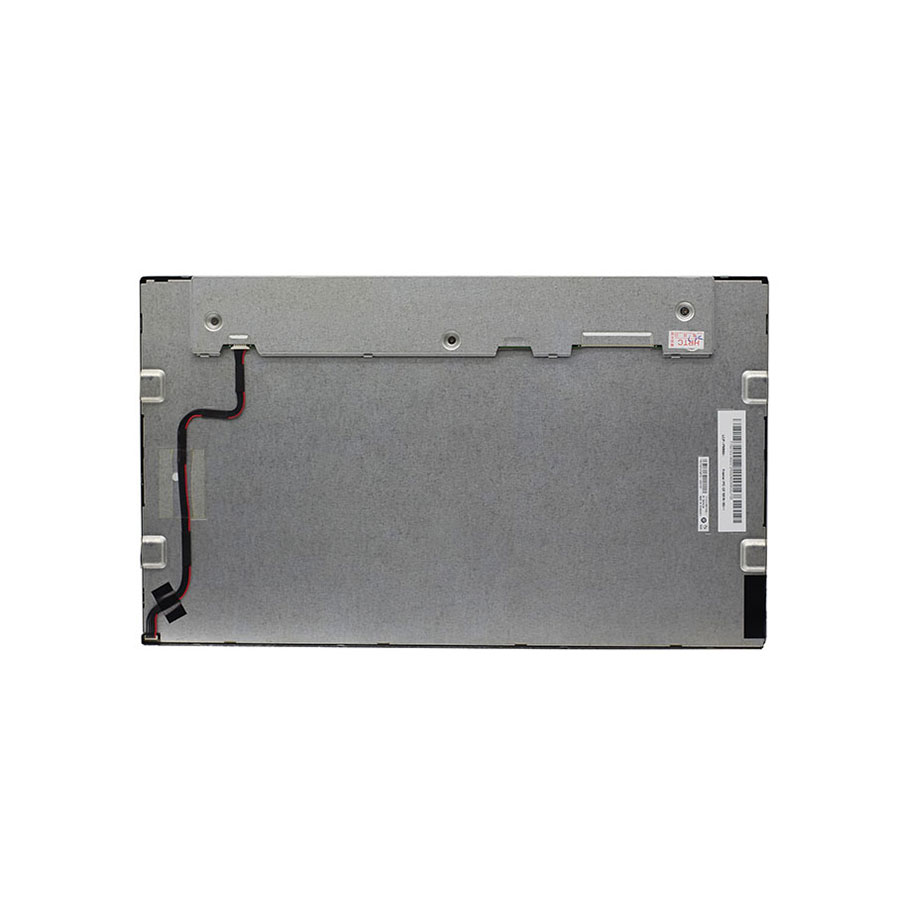

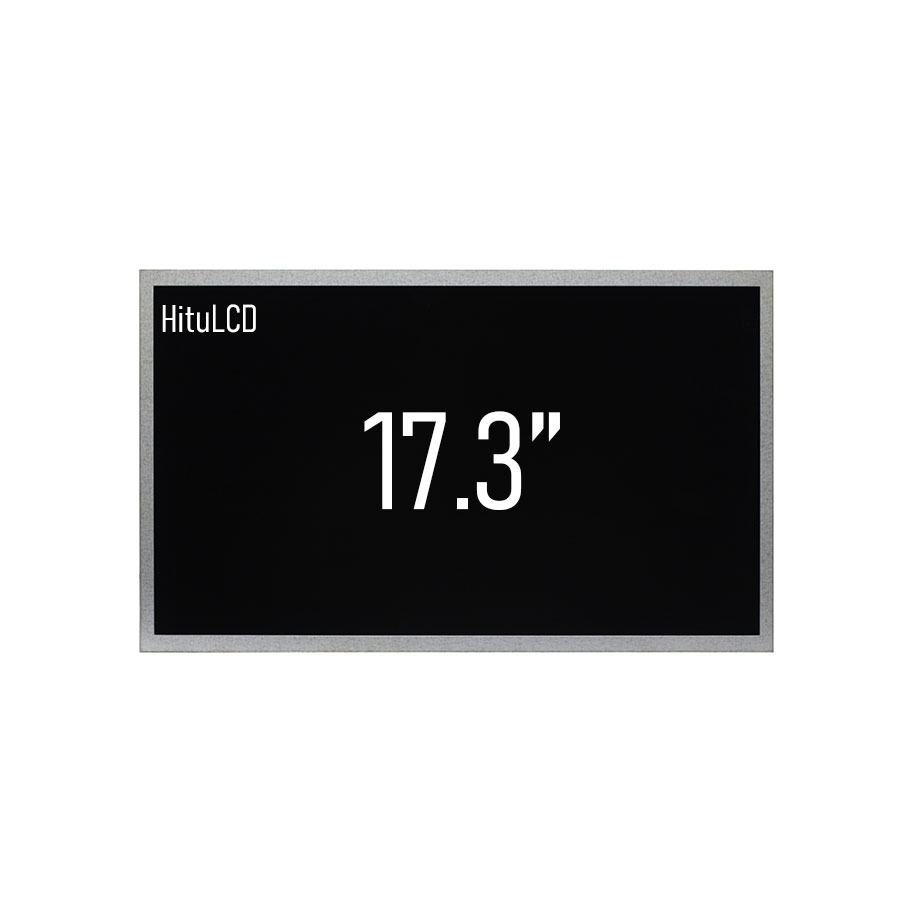

17.3 Inch High Brightness Industrial TFT LCD Display
MODEL: HT173FHD-1000
Technical Highlights
- Built-in light sensor enables automatic brightness adjustment.
- -20°C to 60°C wide operating range for harsh environments.
- 1200 nits high brightness for clear visibility in direct sunlight.
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HANNTU 17.3" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA， |
| Size | 17.3 | Power Input | DC 12V-3A |
| Display area (mm) | 381.888×214.812 mm (H×V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 600:1 | ||
| Pixel per inch (PPI) | 127 | ||
| Viewing angle | 160(H),140(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 37/3 (Typ.)(Tr/Td) ms | ||
| Signal Type | LVDS (2 ch, 8-bit) 30pins | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 20W | ||
| Dimensions (mm) | 403×240×13 mm (H×V×D) | ||
| Mounting | VESA | ||
| Bezel size (U/B/L/R) | 10/10/13/13 | ||
| Operating temperature | 0℃～+70℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 1.1KG | ||
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
17.3 Inch Industrial TFT Display – High Brightness, Full HD, Engineered for Harsh Environments
Designed for mission-critical applications, this 17.3” industrial TFT LCD display delivers exceptional brightness, durability, and long-term reliability. Built for integration into industrial systems, kiosks, transportation, and outdoor equipment, it ensures stable performance even under demanding environmental conditions.
Key Advantages
High Brightness for Sunlight Readability
With brightness levels up to 800–1500 nits, this display ensures clear visibility even in direct sunlight or high ambient light environments—significantly outperforming standard commercial displays (250–300 nits).
Full HD Resolution with Wide Viewing Angles
Featuring 1920×1080 Full HD resolution and wide viewing angles up to 178°, the display provides sharp images and consistent color performance from any angle.
Industrial-Grade Reliability
Engineered for continuous operation, the display supports wide temperature ranges and long backlight lifetimes (up to 50,000 hours), making it ideal for 24/7 industrial use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Screen Size | 17.3 inch |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 800–1500 cd/m² |
| Contrast Ratio | 600:1 – 1200:1 |
| Viewing Angle | Up to 178° |
| Interface | LVDS / eDP (customizable) |
| Operating Temp | 0°C ~ 70°C (optional -20°C ~ 70°C) |
| Backlight Life | ≥50,000 hours |
| Surface Treatment | Anti-glare, hard coating |
| Power Supply | 3.3V / 12V (customizable) |
Designed for Industrial Integration
This display module is optimized for embedded systems and industrial integration:
Easy integration with control boards (LVDS/eDP)
Compatible with industrial PCs and embedded systems
Stable signal transmission for long-term operation
Optional touch solutions (PCAP / resistive)
Typical Applications
Industrial automation systems
EV charging stations
Self-service kiosks
Transportation displays
Medical & diagnostic equipment
Outdoor digital signage
OEM / ODM Customization Capabilities
We don’t just supply standard panels — we engineer display solutions tailored to your project.
Customization options include:
High brightness upgrade (up to 2000+ nits)
Optical bonding (sunlight readability & anti-fog)
Touch integration (PCAP / glove / waterproof)
Interface conversion boards (HDMI / VGA / USB)
Mechanical design (housing, open frame, panel mount)
Wide temperature / rugged design enhancement
Quality & Compliance (Trust & Authority Section)
To ensure global market acceptance and reliability, our displays comply with international standards:
CE / FCC / RoHS compliant
Industrial-grade components sourcing (AUO / BOE / LG panels optional)
100% aging test before shipment
Strict ISO-based manufacturing process
Industrial displays in this category are widely used in certified systems requiring stable operation and compliance with global regulations.
Engineering Expertise You Can Trust
With years of experience in industrial display manufacturing, our engineering team supports:
Fast prototyping (7–15 days)
Full technical documentation (datasheets, drawings, interface specs)
Long-term supply guarantee (5+ years lifecycle support)
Dedicated project support for OEM customers
Why Choose Us
✔ Industrial-grade reliability (not consumer panels)
✔ Custom engineering support (true OEM/ODM capability)
✔ Stable supply chain for global projects
✔ Fast response & professional technical communication
Request a Quote
Looking for a reliable 17.3” industrial display solution?
👉 Contact us today for:
Datasheet & drawings
Customization proposal
Sample availability
