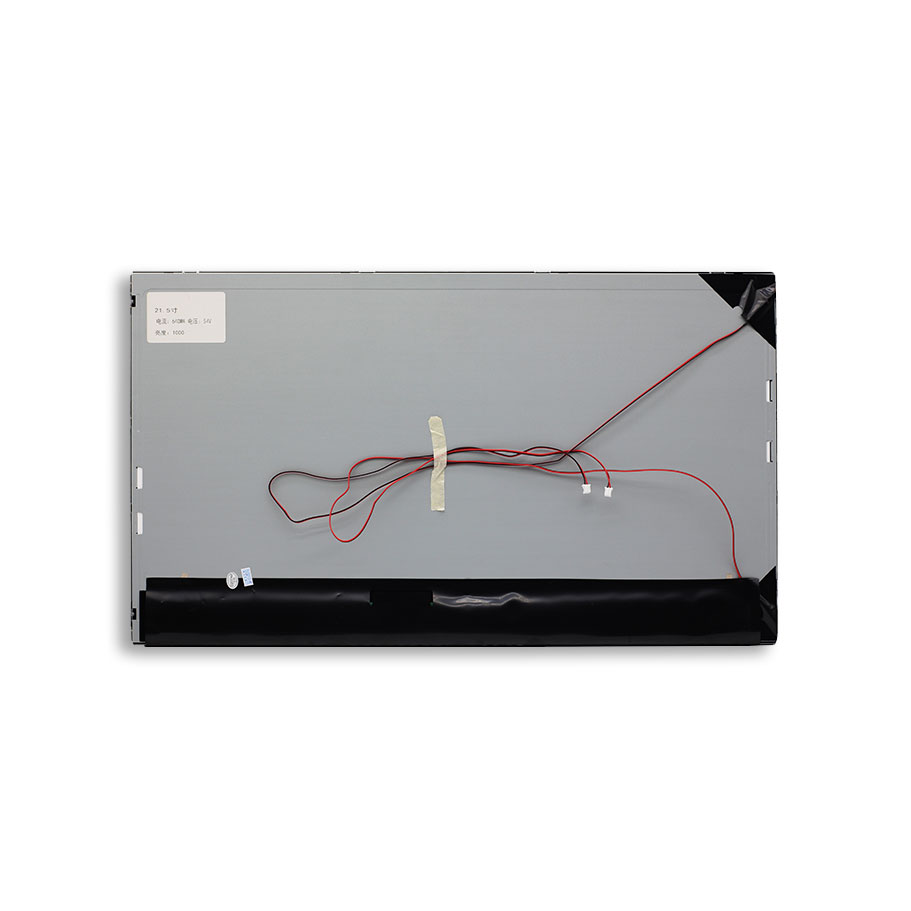

23.8 Inch Sunlight Readable TFT LCD Display -1000Nits Industrial Grade
MODEL: HT238HDL-1000
Technical Highlights
- Delivers clear, high-contrast visibility even under direct sunlight, ideal for outdoor and high ambient light environments.
- Built with long-life LED backlight and stable components, supporting continuous operation up to 50,000 hours.
- Operates reliably from -20°C to 70°C, ensuring stable performance in harsh industrial and outdoor conditions.
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| BRAND | hITULCD | INPUT INTERFACE | DVI-D, HDMI, DP |
| SERIES | 23.6" HIGH BRIGHTNESS LCD | INPUT POWER | AC 100~240V |
| MODEL | HT236HDL-1000 | OSD KEYS | 5 KEYS (POWER, MENU, +, -, EXIT) |
| RESOLUTION | 1920 × 1080 | OSD CONTROL FUNCTIONS | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| BRIGHTNESS (TYP.) | 1000 CD/M² | ||
| INTERFACE TYPE | LVDS (30 PINS) | ||
| PANEL TYPE | A-SI TFT-LCD (TN SOFT SCREEN) | ||
| ASPECT RATIO | 16:9 | ||
| DISPLAY AREA | 521.28 (W) × 293.22 (H) MM (A.A) | ||
| OUTLINE DIMENSIONS | 544.8 (W) × 320.5 (H) MM, MAX THICKNESS 11.5 MM | ||
| VIEWING ANGLE | 85/85/80/80 (L/R/U/D), VIEWING DIRECTION: 6 O'CLOCK | ||
| DISPLAY COLORS | 16.7M | ||
| BACKLIGHT TYPE | WLED | ||
| TOUCH SCREEN | NO TOUCH | ||
| OPERATING TEMPERATURE | 0 ~ 50 °C | ||
| STORAGE TEMPERATURE | -20 ~ 60 °C | ||
Product Features
Explore the advanced specifications and features of our high-performance display solutions.
Custom
We provide flexible customization services for this product, enabling seamless integration into various terminal devices and helping you achieve broader compatibility and stronger market penetration.
Resolution Customization
Supports multiple resolution options including HD, FHD, 2K, and 4K. Custom pixel density ensures sharp and clear images.
Brightness Customization
Brightness adjustable from 500 nits to 5000 nits, optimized for all-day outdoor and high-brightness environments.
Open Frame Customization
Supports open frame structure for easy embedded integration, with flexible installation and housing dimensions.
Interface Customization
Supports HDMI, DP, VGA, USB, RS232, RJ45 and other interfaces for smooth system integration.
Housing Design
Full-scale housing customization with color, texture and structural adjustments to enhance brand image.
Logo & Software
Custom boot logos, UI design, firmware and software integration to boost your brand influence.
Packaging & Labeling
Private label packaging, custom boxes, manuals and labels for a premium brand image.
Why Choose Our OEM/ODM Services?
Fast prototyping and sample delivery
Strict quality control during production
Flexible MOQ adjustments for all projects
Stable lead times and reliable delivery
Global outdoor display expertise
Application Fields
Global Quality and Certification
Strict international certification standards ensure the safety, reliability, environmental friendliness, and high performance of our products in industrial applications.
CE certification
FCC Certification
RoHS compliance
ISO9001
IP65 protection ratingWorld-class LCD glass partner
We collaborate closely with the world's leading LCD glass manufacturers to create high-quality, high-performance display products for our customers, ensuring superior reliability, long service life, and stable performance in harsh industrial environments.
23.8" Sunlight Readable TFT LCD Display – 1000 Nits Industrial Grade
Engineered for outdoor visibility and industrial reliability, this 23.8-inch high brightness LCD display delivers clear images even under direct sunlight. Designed for 24/7 operation in demanding environments.
1000 nits high brightness – sunlight readable
Full HD 1920×1080 resolution
Wide temperature operation
Industrial-grade durability
Ideal for kiosks, EV chargers, HMI systems, and outdoor equipment
Key Advantages
✔ True Sunlight Readability
With 1000 cd/m² brightness, this display ensures excellent visibility in bright environments, making it suitable for outdoor and semi-outdoor applications.
✔ Industrial Reliability (24/7 Operation)
Built with high-quality LED backlight and industrial components, supporting continuous operation with a long lifespan up to 100,000 hours.
✔ Wide Temperature Stability
Designed for harsh environments, operating reliably from -20°C to 70°C. Custom wide-temperature solutions are available.
Typical Applications
EV Charging Stations
Outdoor Self-service Kiosks
Industrial Automation HMI
Smart Lockers
Transportation Displays
Digital Signage (Semi-outdoor)
High brightness displays (1000–1500 nits) are widely used in environments where standard screens fail due to glare and sunlight exposure.
Technical Specifications
| Screen Size | 23.8 inch |
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 1000 cd/m² |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178° |
| Interface | LVDS / HDMI (Optional) |
| Backlight | LED |
| Lifetime | 50,000 – 100,000 hours |
| Operating Temperature | -20°C ~ 70°C |
| Power Supply | 12V |
Engineering & Customization
We provide full OEM/ODM services for industrial applications:
Touch integration (PCAP / Resistive)
Ultra high brightness (1500–3000 nits)
Optical bonding / anti-glare coating
Interface customization (HDMI, eDP, LVDS)
Custom housing and mechanical design
Wide temperature enhancement
Designed for system integrators, OEM manufacturers, and industrial solution providers.
Quality & Reliability Assurance
72-hour aging test
High/low temperature testing
Vibration and shock testing
Backlight stability verification
Uniformity calibration
Compliance: CE / FCC / RoHS / ISO quality management standards
Why Choose Us
10+ years industrial display experience
Stable global supply chain
Fast OEM/ODM customization
Reliable performance in harsh environments
Long lifecycle support (5–10 years)
FAQ
Is 1000 nits enough for outdoor use?
Yes, it is suitable for most semi-outdoor environments. For direct sunlight exposure, higher brightness (1500+ nits) is recommended.
Can the display operate in extreme temperatures?
Yes, the industrial design supports -20°C to 70°C. Wider ranges can be customized.
Do you support touch functionality?
Yes, both capacitive and resistive touch solutions are available.
What is the lifespan of the display?
Typically between 50,000 and 100,000 hours depending on usage conditions.
Get a Quote Today
Contact us for datasheet, samples, or custom solutions. Our engineering team will respond within 24 hours.
