55-Inch Outdoor High-Brightness Bar LCD for OEM Integration
MODEL: HT550HDL-1000
BRIGHTNESS
1000
nits
SIZE
55
inch
RESOLUTION
3840*Cuttable
ASPECT RATIO
Cuttable
Technical Highlights
- Ultra-High Brightness with True Sunlight Readability
- Industrial-Grade Design for 24/7 Outdoor Operation
- Flexible Bar-Type Form Factor with OEM Customization
certification standard
ISO9001
CE
FCC
ROSH
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications

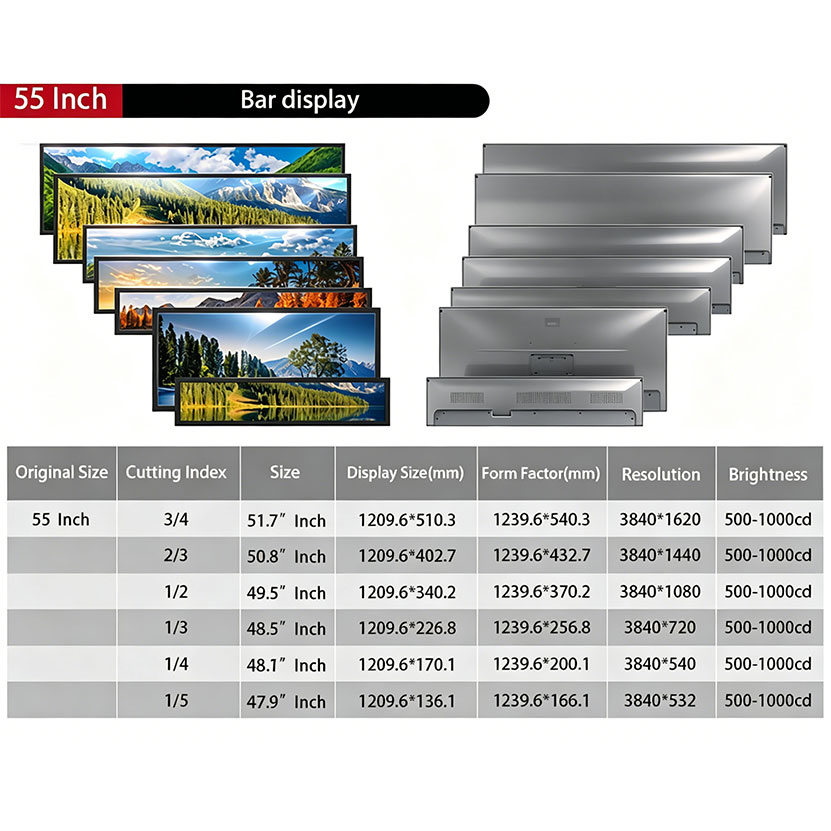

55 Inch Strip LCD Screen Can Be Cut To Different Sizes
| Original Size | Cutting Index | Size | Display Size(mm) | Form Factor(mm) | Resolution | Brightness |
|---|---|---|---|---|---|---|
| 55 Inch | 3/4 | 51.7" Inch | 1209.6*510.3 | 1239.6*540.3 | 3840*1620 | 500-1000cd |
| 2/3 | 50.8" Inch | 1209.6*402.7 | 1239.6*432.7 | 3840*1440 | 500-1000cd | |
| 1/2 | 49.5" Inch | 1209.6*340.2 | 1239.6*370.2 | 3840*1080 | 500-1000cd | |
| 1/3 | 48.5" Inch | 1209.6*226.8 | 1239.6*256.8 | 3840*720 | 500-1000cd | |
| 1/4 | 48.1" Inch | 1209.6*170.1 | 1239.6*200.1 | 3840*540 | 500-1000cd | |
| 1/5 | 47.9" Inch | 1209.6*136.1 | 1239.6*166.1 | 3840*532 | 500-1000cd |
55 Inch Strip LCD Screen Technical Parameters
| LCD PANEL PARAMETERS | HDMI/CONTROL BOARD SPECIFICATIONS | ||
|---|---|---|---|
| ITEM | DETAILS | ITEM | DETAILS |
| Description | HITULCD 50" QLED QUANTUM DOT HIGH COLOR GAMUT 350CD | Input Interface | HDMI, VGA，DP |
| Size | 50 | Power Input | AC 100~240V |
| Display area (mm) | 698.4(H)x 392.85(V) | OSD KEYS | 5 KEYS (POWER SWITCH, MENU, +, -, EXIT) |
| Resolution | 1920*1080 | OSD CONTROL | BRIGHTNESS, COLOR, CONTRAST, AUTO ROTATION, H/V POSITION, ETC. |
| Aspect ratio | 16:9 | ||
| Contrast ratio | 1200:1 | ||
| Pixel per inch (PPI) | 69 | ||
| Viewing angle | 178(H),178(V) | ||
| Display Colors | 16.7M, 72% NTSC | ||
| Response time(Typical) | 8ms | ||
| Signal Type | LVDS (2 ch, 8-bit) | ||
| Backlight | WLED, 30K hrs, With LED Driver | ||
| Power consumption | 50W | ||
| Dimensions (mm) | 718x412x14 | ||
| Mounting | VESA400x200 | ||
| Bezel size (U/B/L/R) | 7.9/7.9/7.9/7.9 | ||
| Operating temperature | 0℃～+50℃ | ||
| Storage temperature | -20℃～+60℃ | ||
| Weight (Net) | 5KG | ||
Related solutions
This product is suitable for the following industry application scenarios
10.1 Inch High Brightness LCD Display for Smart Retail Cabinets | Real-World Deployment Case in Automated Merchandising Systems
10.1-inch high brightness LCD display engineered f...
view
10.1 Inch High Brightness LCD Display for Outdoor EV Charging Stations – Industrial Grade
High brightness 10.1" LCD display for EV char...
view
Industrial-Grade 13.3 Inch High Brightness Screen | Outdoor Operation Case
Facing outdoor display failures? This 13.3" h...
viewRelated Products
You may also be interested in the following products
1000 Nits
Stretched Bar LCD Screen
55-Inch Outdoor High-Brightness Bar LCD for OEM Integration
Ultra-High Brightness with True Sunlight Readability
Industrial-Grade Design for 24/7 Outdoor Operation
Flexible Bar-Type Form Factor with OEM Customization
1000 Nits
Stretched Bar LCD Screen

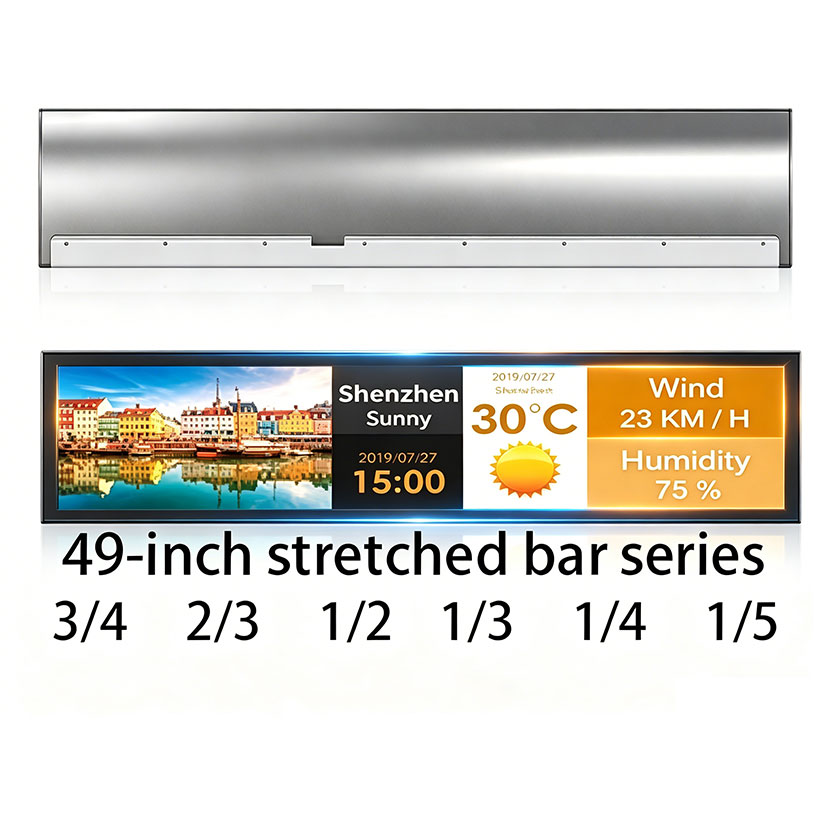

49-Inch Outdoor High Brightness Stretched LCD for Retail & Transit Signage
Ultra-High Brightness with Sunlight Readability
Industrial-Grade Reliability for 24/7 Outdoor Operation
Flexible Stretched Design for Custom Integration (OEM/ODM)
1000 Nits
Stretched Bar LCD Screen

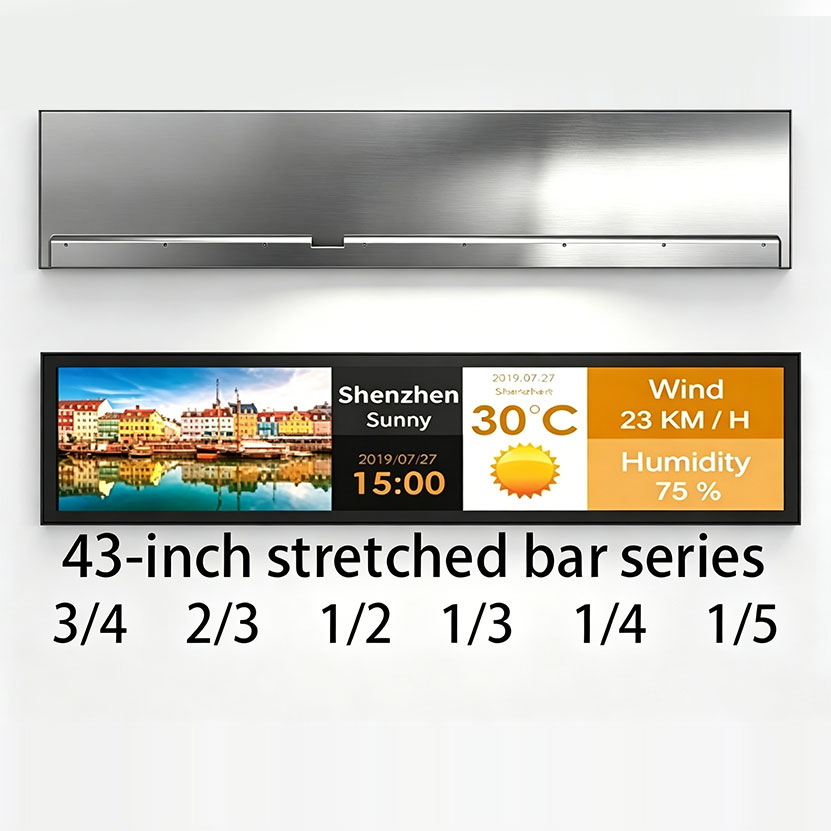

43 Inch Outdoor High Brightness Bar LCD for Digital Signage
