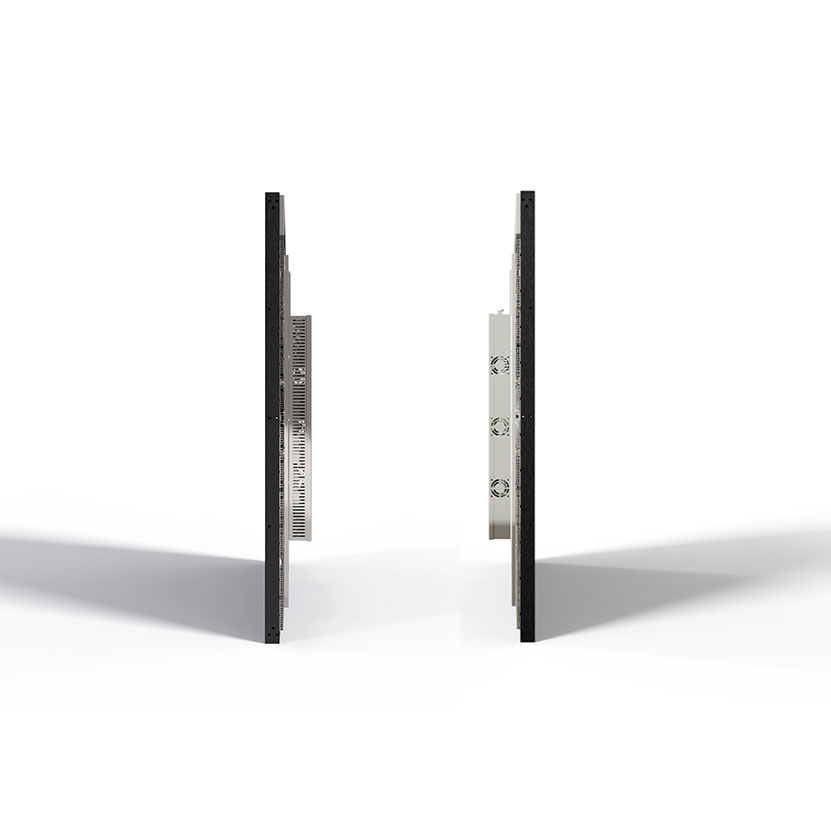

49 Inch 2500nits Open Frame LCD Monitor
MODEL: WD490D-M2
Technical Highlights
- Bulk order lead time: 10~15 days
- 21.5~55" packed individually in heavy-duty carton; 65" packed individually in honeycomb carton
- Custom other colors: MOQ 20pcs, lead time 15 days
certification standard
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
| Item | Specification |
|---|---|
| Model | WD490D-M2 (With Circuit Box) |
| Appearance Color | Black panel & black bezel / Customizable |

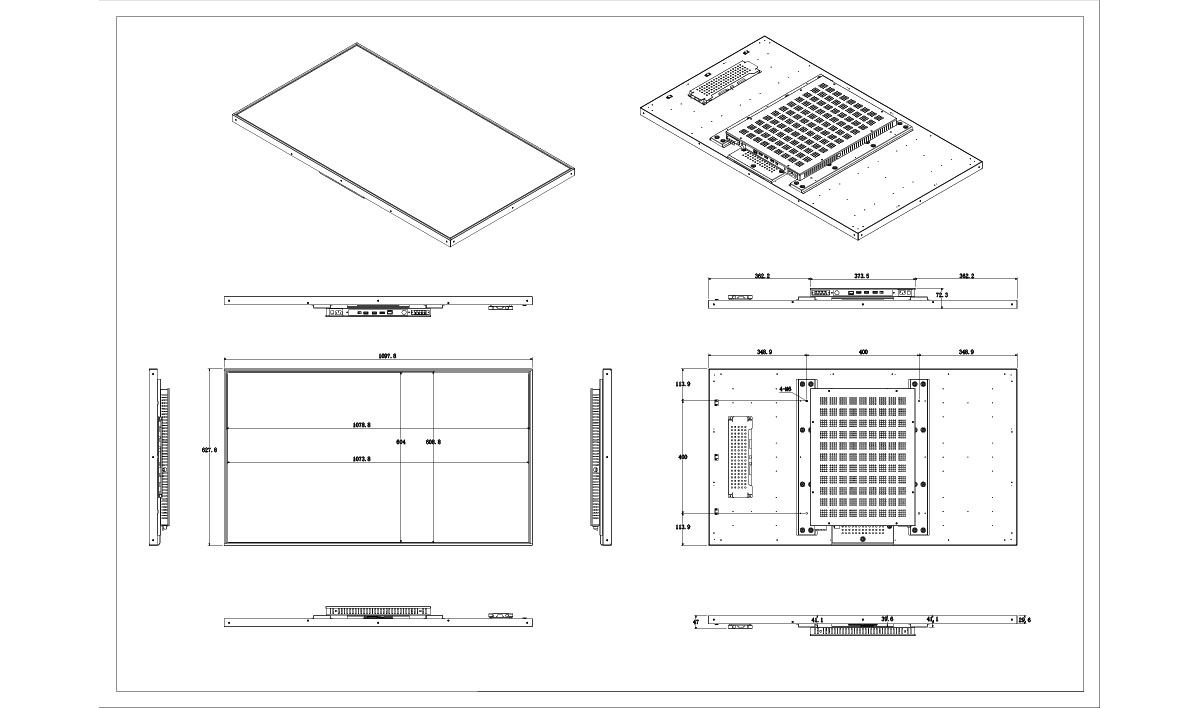

| Dimension (L*W*H) | 1097.8*627.8*72.3 mm |
| Body Material | Sheet Metal |
| Installation Method | Wall-mounted, Floor-standing, Ceiling-mounted |
| Package Dimension | 121*24*74 cm |
| Weight | Net: 13.7kg; Gross: 18.7kg |
| Display Size | 49" TFT LED |
| Display Area / Aspect Ratio | 1073.8mm x 604mm / 16:9 |
| Max Resolution | 1920 x 1080 |
| Brightness | 2500cd/m², Auto Linear Light Sensor |
| Contrast Ratio | 1300:1 |
| Viewing Angle | Up/Down/Left/Right: 89°/89°/89°/89° |
| Response Time | 6ms |
| Color | 16.7M Colors |
| Power Supply & Power Consumption | 100V~240V AC, ≤230W |
| Motherboard & Hardware | RK3568; 4-core CPU 1.8GHz, 4-core Mali-T764 GPU 2GB DDR3 RAM, 16GB Storage (Expandable) |
| Interfaces | 2 External USB, 4 Built-in USB, 1 SD Card Slot, 1 RJ45 Port 1 LVDS, 1 HDMI2.0 (Support 4K@60Hz, Customized) Support WiFi / Bluetooth / Expandable 3G, 4G |
| Operating System | Android 9 / Android 11 |
| Menu Language | Chinese, English, Russian, French, Spanish and other multi-languages |
| Video Formats | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV |
| Audio Formats | MPEG-1 Layers I/II/III2.0, MPEG-4 AAC-LC 5.1/HE-AAC 5.1/BSAC 2.0, WAV, 24-bit linear PCM 7.1 |
| Image Formats | BMP, JPEG, PNG, GIF |
| Other Supported Formats | PDF, PPT, SWF, Text, Real-time Data Stream |
| Screen Partition | Video area, Image & text area, Scroll subtitle, LOGO area, Date area, Time area, Week area, Weather forecast area, Real-time image area, Real-time video area |
| Firmware Upgrade | Update via SD Card |
| System Management | Unified management, Group management, Multi-user management, Remote management, Timing power on/off |
| Remote Operation | Remote auto power on/off, Remote program update & edit, Remote status monitoring |
| Playback Mode | Loop play, Timing play, Insert play and other modes |
| System Architecture | B/S (Browser/Server) Architecture |
| Network Support | LAN, WAN, WiFi, 3G |
| Built-in Speaker | Dual Mini Speakers |
| Reliability | 50000 Hours |
| Operating Temperature | -10℃ ~ 50℃ |
| Storage Temperature | -20℃ ~ 60℃ |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
| Security | Hardware dongle support, Login password, Control password, Multi-level user permission |
| Environmental Standard | All components and packaging materials comply with international environmental standards |
Delivered by a full-array direct-lit LED matrix — not edge-lit. Uniform luminance across the entire 49-inch panel, with an integrated ambient light sensor that adjusts output in real time. Readable at a glance under fluorescent overhead lighting, next to uncovered windows, and in semi-outdoor concourse environments.
BRIGHTNESS COMPARISON
† Nominal brightness ratings. Actual ambient contrast depends on installation environment and surface treatment.
Decisions made for integrators,
not for the spec sheet.
Every hardware choice on this panel reflects the realities of commercial deployment: sustained brightness, thermal stability, flexible connectivity, and a form factor that installs cleanly into custom enclosures.
Sunlight Readable
2,500 cd/m² with auto lux-sensor dimming. Consistent luminance across the full panel without hot-spot artifacts from a direct-lit array.

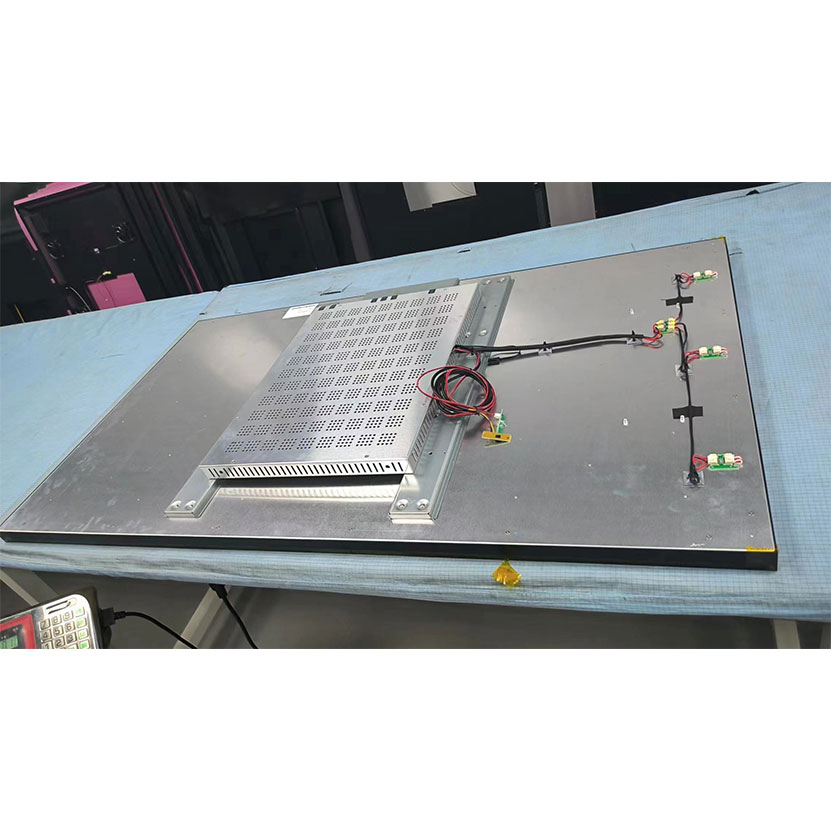

Open-Frame Chassis
Sheet-metal body with front and rear standard screw patterns. Designed to mount cleanly inside kiosk enclosures, display cabinets, and custom rack assemblies.
RK3568 · Android 11
Quad-core Cortex-A55 at 1.8 GHz with 2 GB DDR3 and 16 GB eMMC. Full Android 11 with enterprise management APIs — no external media player needed.
Full Connectivity Stack
WiFi, Bluetooth, RJ45 Ethernet, HDMI 2.0 (4K input), 6× USB, SD card, plus optional 4G LTE for air-gapped or offline-resilient installs.
Enterprise Security
Hardware dongle authentication, tiered user permission management, login and control passwords. Meets common requirements in financial and government procurement.
−10 °C to +50 °C
Tested across the full operating envelope. Suitable for temperature-variable retail environments, warehouse edges, and installations near heat sources or ventilated enclosures.
Full Technical Specification
| Display Size | 49" TFT LED |
| Resolution | 1920 × 1080 (Full HD) |
| Aspect Ratio | 16:9 |
| Active Display Area | 1073.8 mm × 604 mm |
| Peak Brightness | 2,500 cd/m² · Auto Linear Light Sensor |
| Contrast Ratio | 1300:1 |
| Viewing Angle (H/V) | 89° / 89° (all four directions) |
| Response Time | 6 ms (GtG) |
| Color Depth | 16.7M Colors |
| Backlight Technology | Direct-Lit LED Array |
| Rated Backlight Life | 50,000 Hours |
Where the WD490D-M2 is specified.
Transit & Transportation
Airport concourses, metro platforms, and intercity rail hubs. The 89° wide viewing angle and 2,500-nit output serve both near and far passenger sight lines under mixed natural and artificial lighting.
Retail & QSR
High-ceiling stores and quick-service menu boards. The wide temperature range accommodates heat from kitchen proximity or ventilated display enclosures common in food-service environments.
Gaming & Hospitality
Casino floors with high ambient lighting and mandatory 24/7 uptime. The 50,000-hour backlight life directly reduces TCO relative to panels requiring periodic replacement cycles.
Industrial & Control Rooms
Factory-floor operator panels and process control rooms. Metal chassis and isolated power architecture suit industrial EMC environments where consumer-grade panels fail prematurely.
Financial & Government
Branch banking lobbies and government service counters. Multi-level security architecture, including hardware dongle support and tiered user permissions, addresses enterprise IT requirements.
Healthcare
Hospital corridors and clinic reception for patient flow and health communications. 24/7 operation rating and RoHS compliance align with typical healthcare facility procurement standards.
Every port and protocol.
Your product. Our platform.
The WD490D-M2 is available as a white-label or co-branded platform. Chassis color, bezel, brightness range, OS build, and interface layout are all adjustable. Engineering support is included on qualified orders.
Custom chassis color — MOQ 20 units, 15-day lead time
Brightness range 1,500–3,000 cd/m² configurable on request
Android OS image customization: pre-loaded apps, locked launcher, kiosk mode
Pre-sales integration consultation included at no charge
Sample units available before bulk commitment
