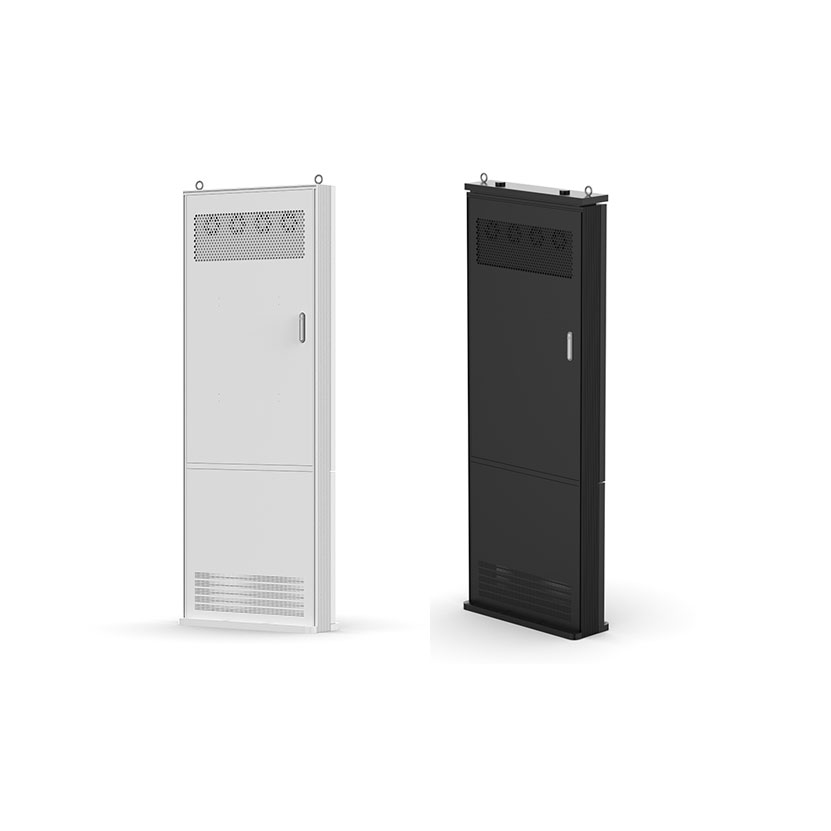

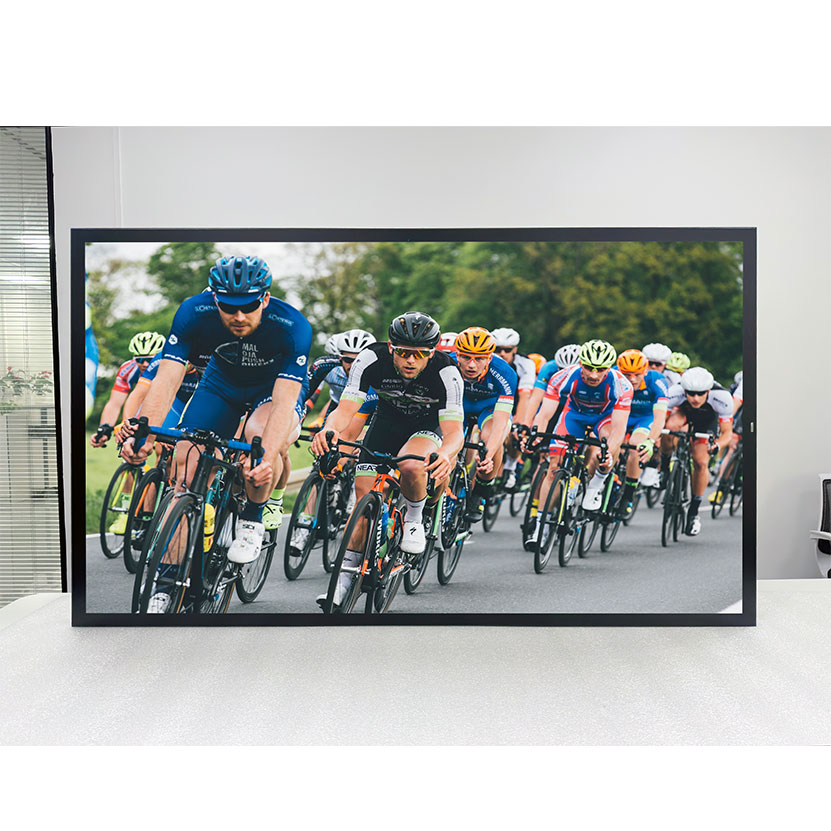

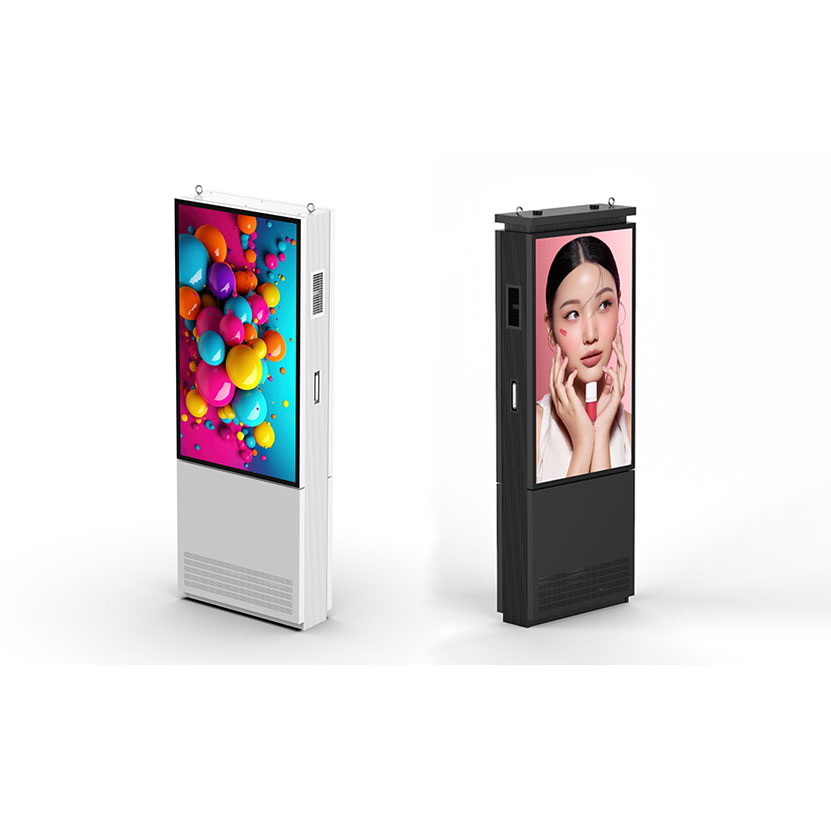

32~75 Inch IP66 Single/Double Sided Outdoor Digital Signage
MODEL: WD(320-750)D-IP66
BRIGHTNESS
5000
nits
SIZE
32-75
inch
RESOLUTION
1920*1080
ASPECT RATIO
16:9
Technical Highlights
- 7 days delivery after confirmation of customer-supplied mainboard.
- 10-15 days delivery for bulk orders.
- Custom colors: MOQ 20 units, lead time 15 days.
certification standard
ISO9001
CE
FCC
ROSH
Need customized solution?
Our engineering team is always ready to provide you with professional technical support and flexible customized services.
Understand light customization servicesTechnical Specifications
32~75 Inch IP66 Single/Double Sided Outdoor Digital Signage
| Series | Size (inch) | Model No. | Product Images | Production & Delivery Notes | Technical & Structural Features |
|---|---|---|---|---|---|
| Outdoor enclosed maintenance-free unit IP66 (Outdoor Sealed Maintenance-Free Unit IP66 Series) | 32 | WD320D-IP66 |  | 1. Color: Black 2. Regular stock: 30 sets; 65/75 inch spare parts: 5 sets. 3. 7 days delivery after confirmation of customer-supplied mainboard. 4. 10-15 days delivery for bulk orders. 5. Custom colors: MOQ 20 units, lead time 15 days. | 1. OD10 backlight solution, brightness 800-5000 nits; brightness above 3000 nits requires confirmation with our company. 2. Overall thickness: 85mm. 3. IP66 outdoor waterproof rating, with tempered glass, high temperature resistance, waterproof & lightning protection. 4. Developed profiles for wall-mounted single-sided, landscape floor-standing single-sided, portrait single/double-sided units; optional linkable screen brackets, max. triple screen. |
| 43 | WD430D-IP66 | ||||
| 49 | WD490D-IP66 | ||||
| 55 | WD550D-IP66 | ||||
| 65 | WD650D-IP66 | ||||
| 75 | WD750D-IP66 |

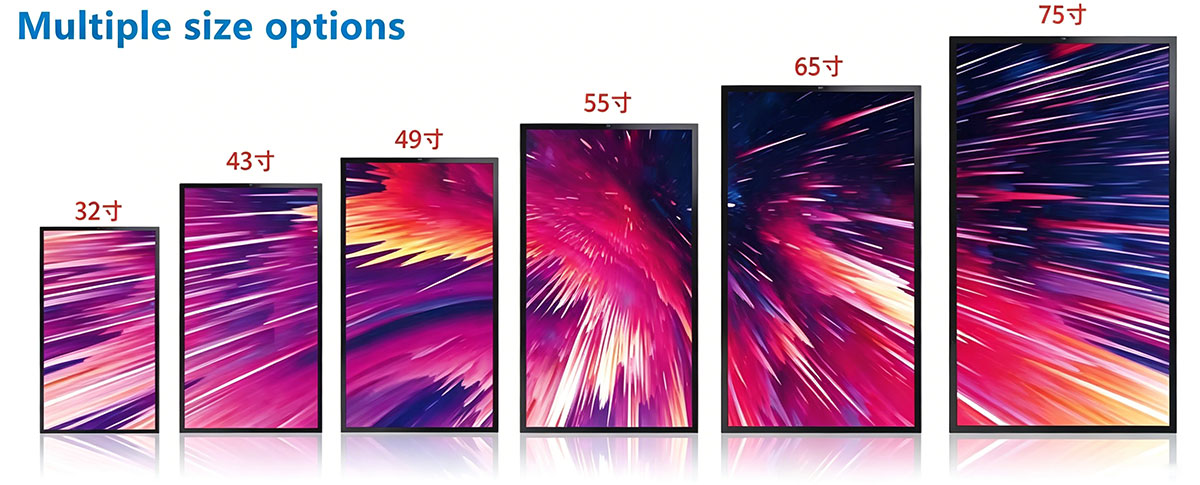

32~75 Inch Specifications
| Specifications | Model: WD-IP66 | ||||||
|---|---|---|---|---|---|---|---|
| Category | Item | 32" | 43" | 49" | 55" | 65" | 75" |
| Panel | Display Size (inch) | 32" | 43" | 49" | 55" | 65" | 75" |
| Resolution | 1920×1080 | 1920×1080 | 1920×1080 | 1920×1080 | 3840×2160 | 3840×2160 | |
| Active Display Area (mm) | 698.8×750.8 | 942×530.4 | 1075×605 | 1210×680.8 | 1429×804 | 1651.2×930.2 | |
| Aspect Ratio | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | 16:09 | |
| Brightness (cd/m²) | 3000nit | 3000nit | 3000nit | 3000nit | 3000nit | 3000nit | |
| Contrast Ratio (Typ.) | 1200:1 | 1200:1 | 1300:1 | 1200:1 | 1100:1 | 1200:1 | |
| Viewing Angle (H/V) | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | 178°/178° | |
| Color | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | 16.7M | |
| Response Time (G-to-G) | 10ms | 8ms | 8ms | 6ms | 9ms | 8ms | |
| Operation Hour | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | 24/7 | |
| Sound | Loud Speaker | 10W, 8Ω (2 sets) | 10W, 8Ω (2 sets) | 10W, 8Ω (2 sets) | 10W, 8Ω (2 sets) | 10W, 8Ω (2 sets) | 10W, 8Ω (2 sets) |
| Power | Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Power Supply | MEAN WELL IP68 XLG AC 100 - 240 V ~ (+/- 10%), 50/60 Hz | ||||||
| Max Consumption (W/h) | 135 | 165 | 189 | 200 | 385 | 470 | |
| Sleep Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Off Mode | < 0.5W | < 0.5W | < 0.5W | < 0.5W | < 0.5W | < 0.5W | |
| Mechanical Spec | Protection Glass | 5mm AG | 5mm AG | 5mm AG | 5mm AG | 5mm AG | 5mm AG |
| Dimension (W × H × D) mm | 750.8×445.4×86 | 994×582.4×86 | 1127×657×86 | 1262×732.8×86 | 1481×856×86 | 1703.2×982.2×86 | |
| Package Size mm | 885×205×580 | 1125×205×710 | 1270×205×785 | 1400×205×860 | 1620×205×990 | 1845×205×1110 | |
| Net Weight (kg) | 16.5 | 25.9 | 31 | 36.8 | 49.5 | 65.5 | |
| Gross Weight (kg) | 20.75 | 31.45 | 38.1 | 44.5 | 60.5 | 83.5 | |
| Screen TNI | 100°C | 105°C | 110°C | 110°C | 110°C | 110°C | |
| Environmental | Operating Temperature | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C |
| Operating Humidity | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | 10% ~ 80% | |
| Storage Humidity | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | 5% ~ 95% | |
| OS / Android Media Player | Processor | RK3568 (2.0 GHz, octa-core) | |||||
| RAM | 4G | ||||||
| Flash | 32G | ||||||
| USB | USB2.0 HOST (×2) | ||||||
| LAN | 10M / 100M Ethernet (Network version screen only) | ||||||
| External Memory | / 16G / 32G / 64G | ||||||
| Multimedia | Video (MPG, AVI, MP4, RM, RMVB, TS), Audio (MP3, WMA), Image (JPG, GIF, BMP, PNG) | ||||||
| Media Resolution | 1920×1080, 3840×2160 | ||||||
| Wi-Fi / Ethernet | 802.11b/g/n, Ethernet (Network version screen only) | ||||||
| Operating System | Android 11 | ||||||
| Certification | Safety | CE, ROHS, IP66, PSE | |||||
| Accessories | Included | Scheduling software, Remote control, Key, Power cable, SD card | |||||
| Quality Assurance | 1 Year (2–3 years optional) | ||||||
| Packaging Type | Carton box / honeycomb box + wooden case | ||||||

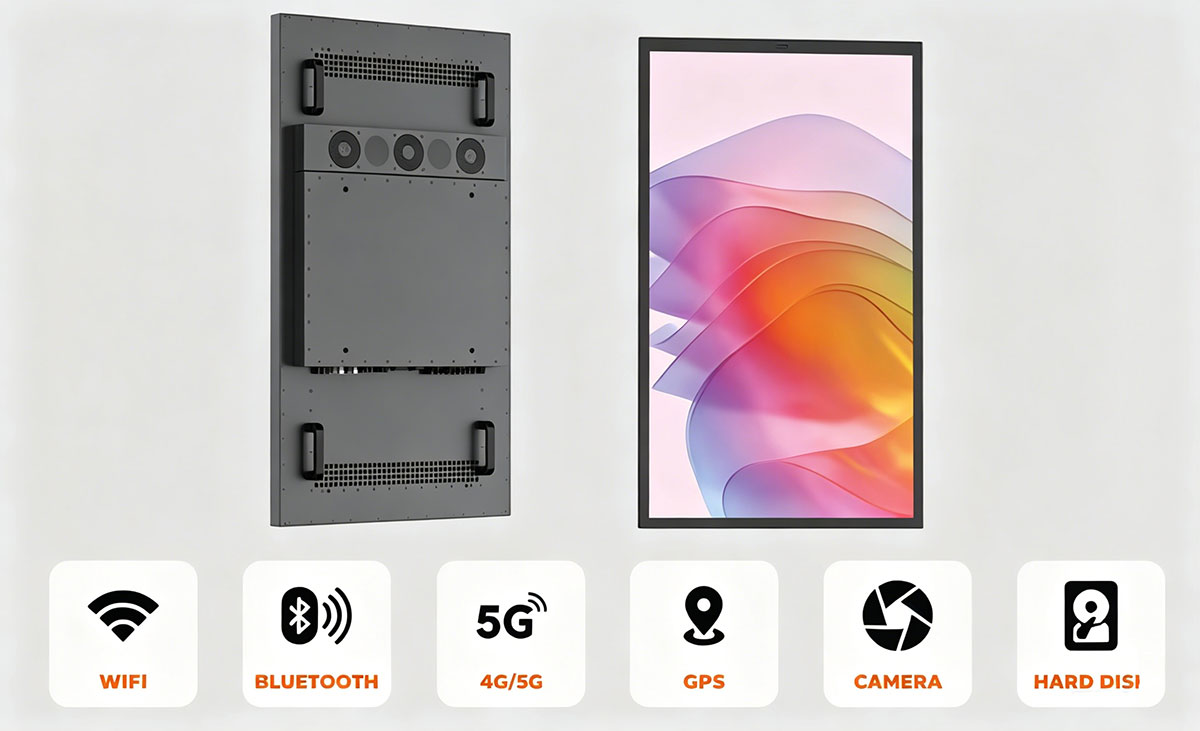

CUSTOM DISPLAY SOLUTIONS
Wve can customizeyour features based onyour reguirements.
Standard Package
1.st layer: plastic protective film,
2.nd layer: Honeycomb carton;
3.rd layer: wooden box

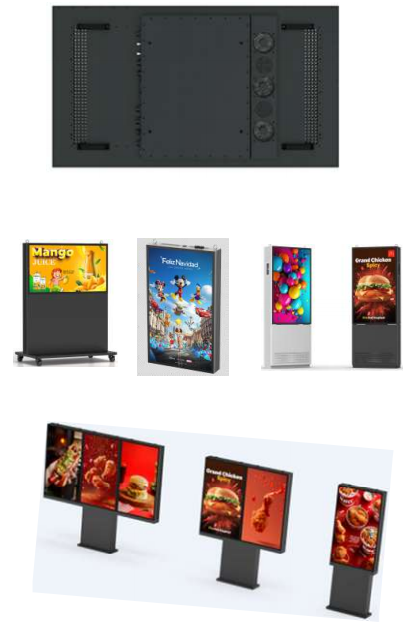

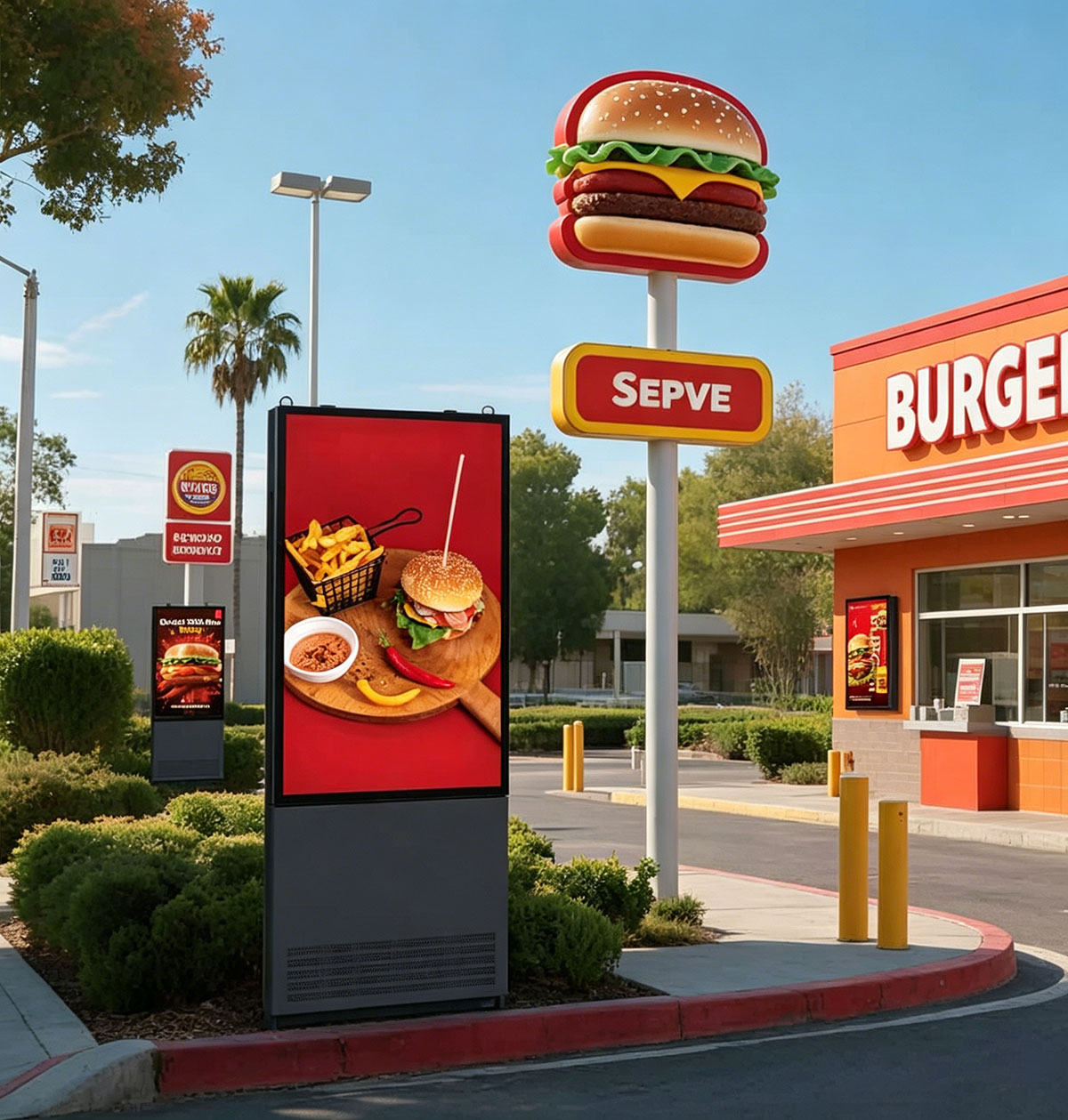

Maintenance-free sealed outdoor Digital Signage equipment

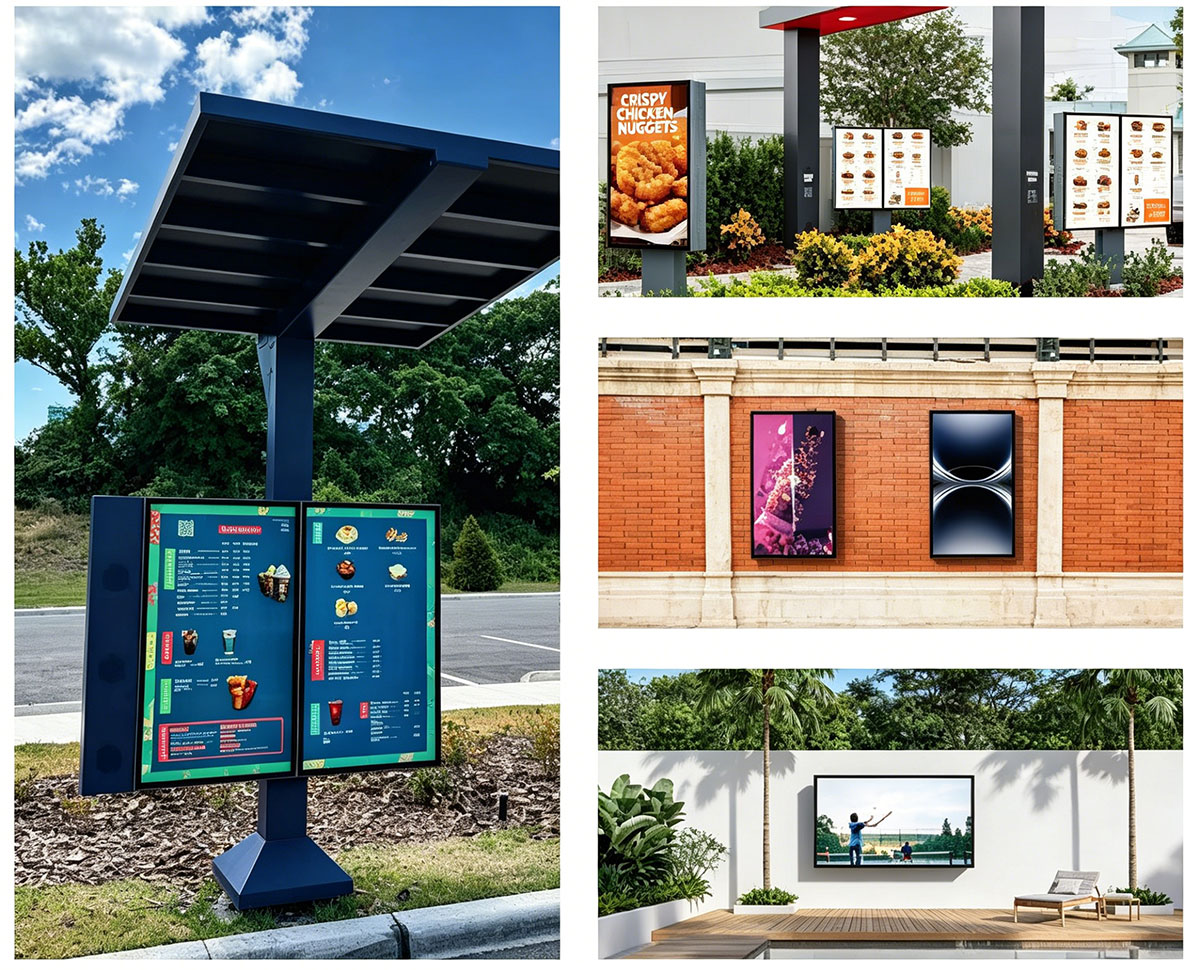

Why Outdoor LCD Displays Are Becoming the Preferred Advertising Medium
Compared with traditional media channels such as TV, newspapers, and printed advertising, outdoor LCD displays are experiencing much faster market growth and are increasingly favored by global advertisers and commercial brands.
During seasonal promotions and holiday marketing campaigns, high-brightness LCD advertising screens are widely deployed in high-traffic locations including:
Bus Stops
Shopping Malls
Hotels
Subway Stations
Cinemas
Retail Streets & Commercial Centers
These digital signage solutions have become a core marketing tool for modern shopping centers, helping brands increase customer engagement, improve advertising visibility, and drive higher sales conversion rates.
Advantages of Outdoor LCD Advertising Displays
Wider Application Coverage
Suitable for transportation hubs, retail storefronts, smart cities, restaurants, public spaces, and commercial advertising networks.
Higher Advertising ROI
Continuous 24/7 operation and high audience exposure significantly improve advertising effectiveness and return on investment.
Superior Image Performance
High brightness, vivid colors, and sunlight-readable technology ensure clear visibility even under strong outdoor lighting conditions.
Modern Industrial Design
Slim bezels, lightweight structures, and customizable installation options make outdoor LCD displays ideal for premium commercial environments.
From application flexibility and visual performance to advertising efficiency and product aesthetics, outdoor LCD displays offer clear advantages over traditional advertising media and many competing display technologies.
Ultra-Thin Fully Sealed Industrial Design
Developed with an independently engineered structural design, the display features a lightweight and ultra-thin fully sealed enclosure built for modern commercial environments.
The front panel adopts a four-side symmetrical design concept, delivering a cleaner and more balanced visual appearance that enhances the overall aesthetics of retail and digital signage installations.
Fully Sealed Structure
The enclosed body design improves internal component protection while maintaining long-term operational stability in commercial applications.

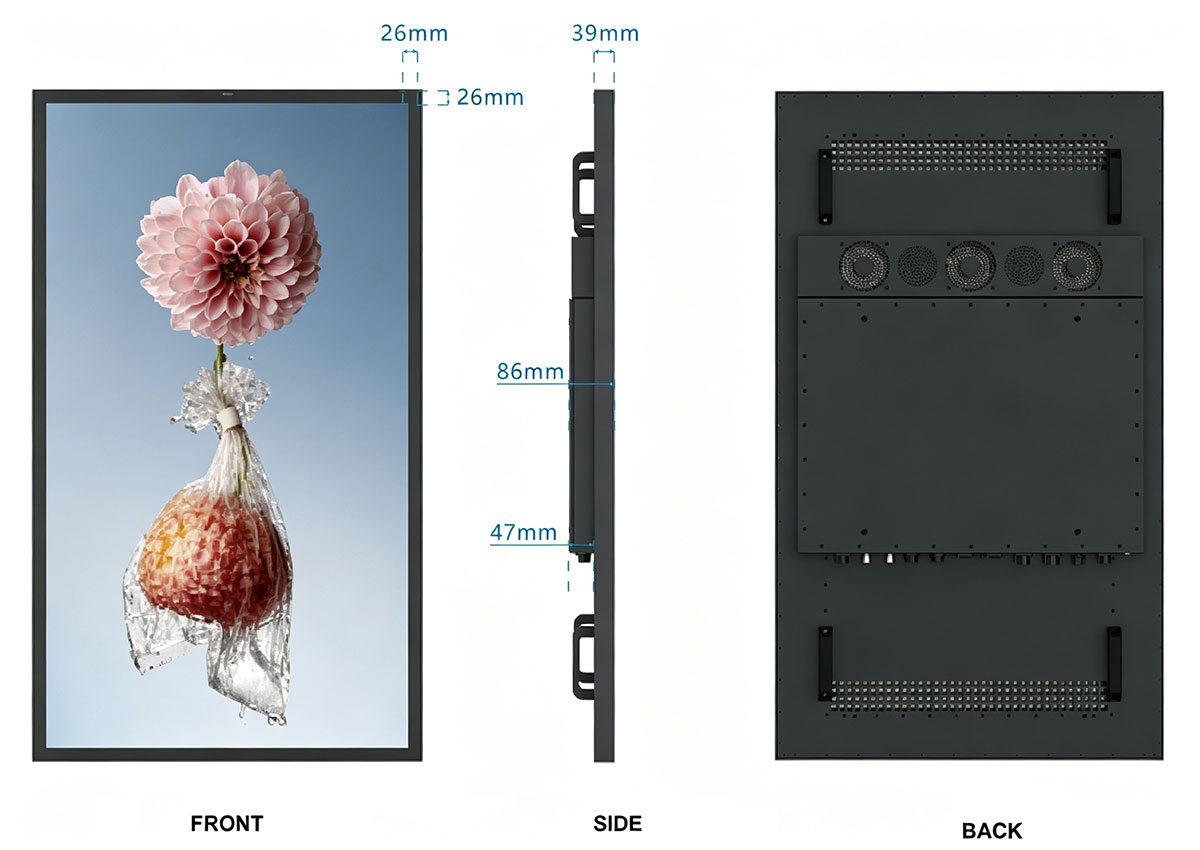

26mm Narrow Bezel Design
The stylish ultra-narrow frame creates a larger visible display area and provides a more immersive advertising presentation.
86mm Slim Body
With a cabinet thickness of only 86mm, the display achieves a sleek and space-saving profile suitable for modern storefronts and indoor window applications.

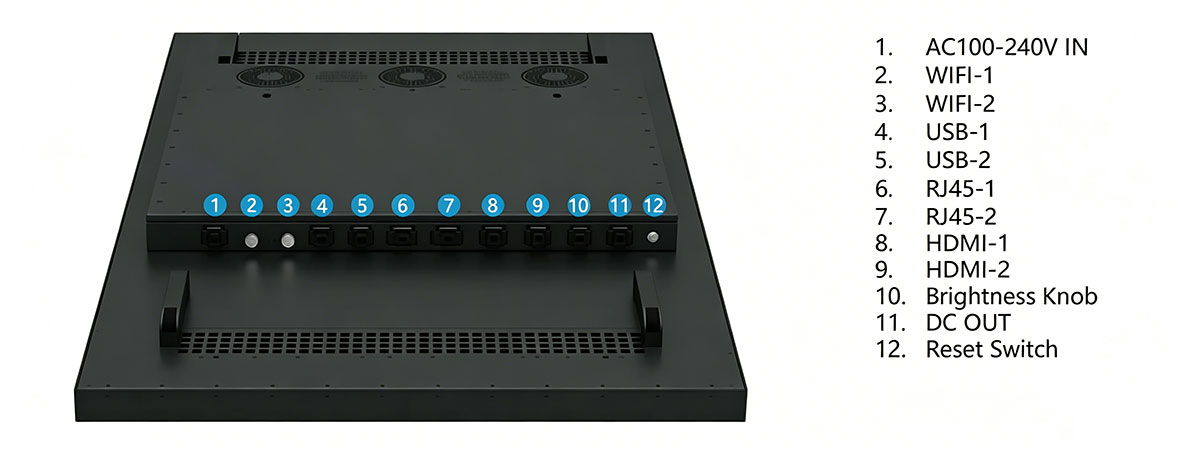

Rich Connectivity Options
The display is equipped with a wide range of interface options and offers excellent compatibility with most mainstream motherboard platforms available on the market.
Its flexible hardware architecture enables customers to easily expand system functions, integrate third-party solutions, and adapt the display to various commercial and industrial applications.
Multiple Interface Support
Supports diversified connectivity requirements for digital signage, media playback, remote management, and intelligent control systems.
Wide Mainboard Compatibility
Compatible with most mainstream motherboard models, providing greater flexibility for OEM and system integration projects.
Easy Function Expansion
The modular design simplifies hardware upgrades and feature expansion, helping customers customize solutions based on specific project requirements.
Precision Craftsmanship & Ultra-Thin Industrial Design
Combining precise manufacturing technology with modern industrial aesthetics, the display adopts an ultra-thin aluminum frame structure together with a durable aluminum back panel finished with outdoor-grade powder coating.
The surface is treated with high-quality fine sandblasting technology, creating an elegant metallic texture and a refined visual appearance. The premium coating process delivers a smooth and bright finish that resists peeling, fading, and long-term environmental wear.
Premium Aluminum Construction
Lightweight aluminum materials improve structural strength while reducing the overall weight of the display for easier installation and transportation.
Outdoor Powder Coating
The outdoor-grade powder-coated surface offers excellent durability, corrosion resistance, and long-lasting appearance even under demanding commercial environments.
Fine Sandblasted Texture
Advanced fine sand treatment enhances the product texture and delivers a sophisticated metallic finish suitable for premium retail and commercial applications.
Ultra-Thin Space-Saving Design
As modern consumers increasingly prefer stylish and lightweight digital products, outdoor display solutions are evolving toward thinner and more compact structures that maximize installation flexibility and save valuable commercial space.

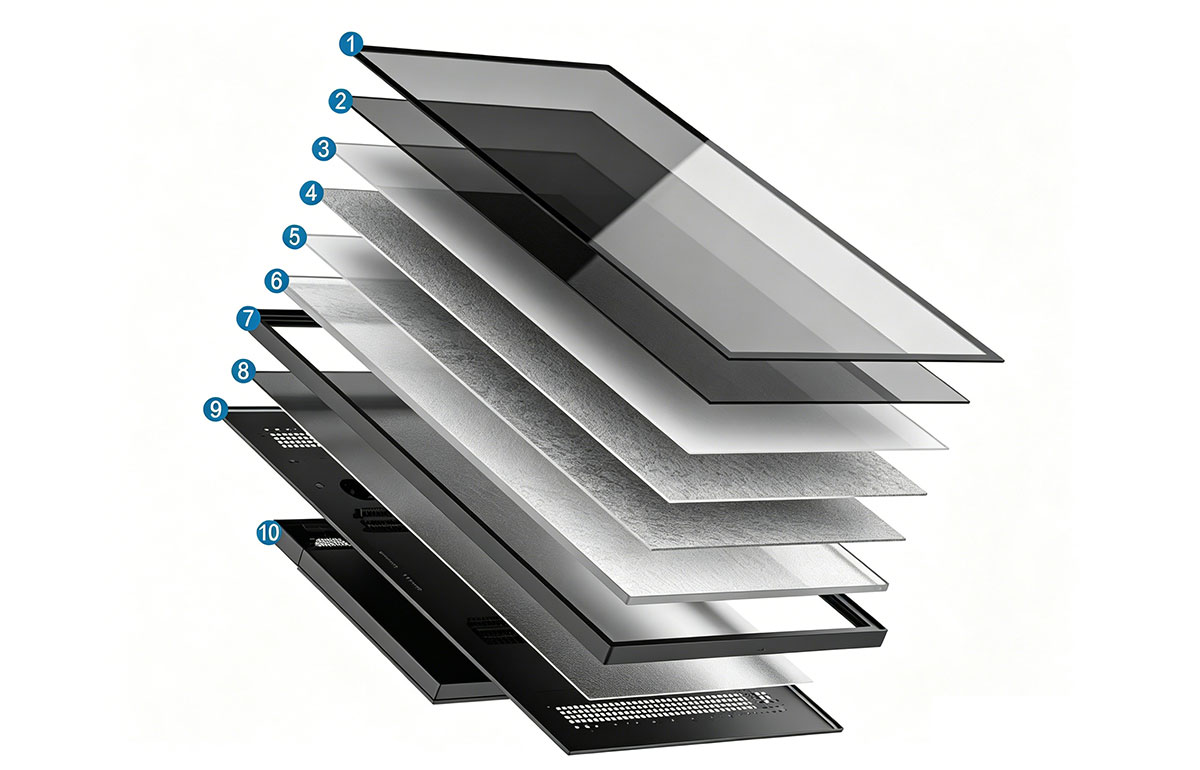

1
IK10 tempered protective glass (AG钢化玻璃)
2
High temperature OC (液晶面板)
3
3M DBEF (3M 光学膜)
4
Brightening film (增光膜)
5
High temperature diffusion plate (高温扩散板)
6
Mini led backlight (Mini 背光灯板)
7
Aluminum frame (型材面框)
8
Waterproof groove (铝背板)
9
Aluminum waterproof backplane (铝外壳)
10
Tergum (铝电器控制盒)

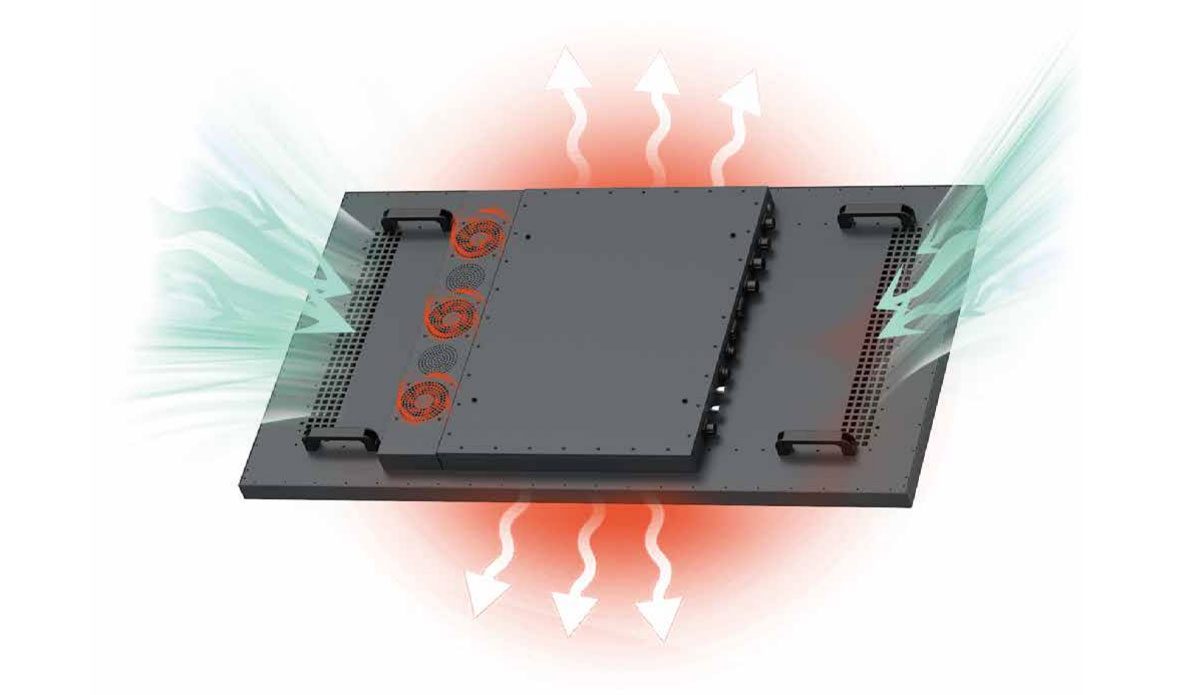

Advanced Aluminum Heat Dissipation Structure
Unique continuous and uniform heat dissipation design ensures stable long-term operation in demanding outdoor environments. The entire equipment adopts a full aluminum structure with excellent thermal conductivity, allowing heat to be transferred efficiently throughout the chassis.
The backlight plate is directly connected to the air circulation system, maximizing heat exchange efficiency and achieving superior cooling performance even under high brightness operating conditions.
Waterproof protection utilizes three layers of automotive-grade outdoor silicone sealing technology, providing reliable resistance against rain, dust, humidity, and harsh environmental conditions.
IP66-RATED OUTDOOR DISPLAY
High Visibility Under Strong Sunlight
The outdoor display screen has an outstanding high brightness of 3000 nits. Even under strong sunlight, the screen can clearly convey content and attract passers-by.
